DTC P0642 Sensor Reference Voltage "A" Circuit Low

DTC P0643 Sensor Reference Voltage "A" Circuit High


DESCRIPTION

Refer to DTC P0122 (See page Нажмите здесь) and DTC P1120 (See page Нажмите здесь).

DTC No.
DTC Detection Condition
Trouble Area
P0642
Power voltages (5 V as standard) supplied from ECM to both intake shutter position and accelerator pedal position sensors are lower than appropriate thresholds
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
  1. Diesel throttle body (intake shutter position sensor)
  2. Open or short in diesel throttle body (intake shutter position sensor) circuit
  3. Accelerator pedal position sensor
  4. Open or short in accelerator pedal position sensor circuit
  5. ECM
P0643
Power voltages (5 V as standard) supplied from ECM to both intake shutter position and accelerator pedal position sensors are higher than appropriate thresholds
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
  1. Diesel throttle body (intake shutter position sensor)
  2. Open or short in diesel throttle body (intake shutter position sensor) circuit
  3. Accelerator pedal position sensor
  4. Open or short in accelerator pedal position sensor circuit
  5. ECM
УКАЗАНИЕ:
These DTCs are set when the ignition switch is in the ON position.

WIRING DIAGRAM

Refer to DTC P0122 (See page Нажмите здесь) and DTC P1120 (See page Нажмите здесь).

INSPECTION PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0642 AND/OR P0643)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Turn the tester on.

  1. Enter the following menu items: Powertrain / Engine and ECT / DTC.

  1. Read the DTCs.

    Result:
    Result
    		Proceed to
    DTC P0642 and/or P0643 are output
    		A
    DTC P0642 and/or P0643 and other DTCs are output
    		B
    УКАЗАНИЕ:
    If any DTCs other than P0642 and/or P0634 are output, troubleshoot those DTCs first.


B
GO TO DTC CHART (Нажмите здесь)
A


2.CHECK HARNESS AND CONNECTOR (INTAKE SHUTTER (THROTTLE VALVE) POSITION SENSOR - ECM)

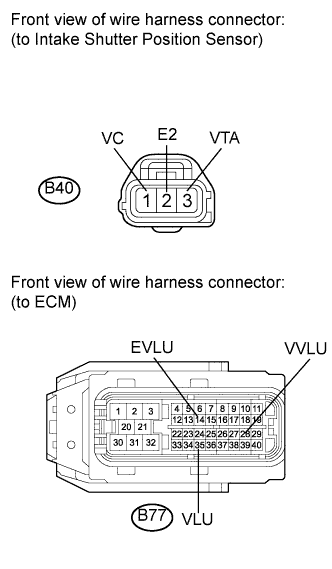

    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0642 Sensor Reference Voltage A Circuit Low

  1. Disconnect the intake shutter position sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    B77-28 (VVLU) - B40-1 (VC)
    		Always
    		Below 1 Ω
    B77-35 (VLU) - B40-3 (VTA)
    		Always
    		Below 1 Ω
    B77-14 (EVLU) - B40-2 (E2)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B77-28 (VVLU) or B40-1 (VC) - Body ground
    		Always
    		10 kΩ or higher
    B77-35 (VLU) or B40-3 (VTA) - Body ground
    		Always
    		10 kΩ or higher
    B77-14 (EVLU) or B40-2 (E2) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the intake shutter position sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (INTAKE SHUTTER (THROTTLE VALVE) POSITION SENSOR - ECM)
OK


3.INSPECT ECM (VC VOLTAGE)

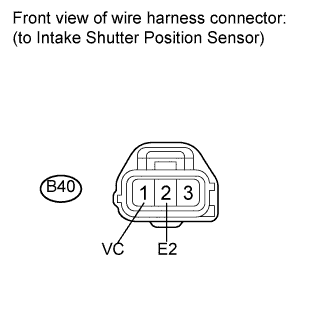

    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0642 Sensor Reference Voltage A Circuit Low

  1. Disconnect the intake shutter position sensor connector.

  1. Turn the ignition switch to the ON position.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    B40-1 (VC) - B40-2 (E2)
    		Ignition switch ON
    		4.5 to 5.5 V

  1. Reconnect the intake shutter position sensor connector.



NG
REPLACE ECM (Нажмите здесь)
OK


4.CHECK HARNESS AND CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)

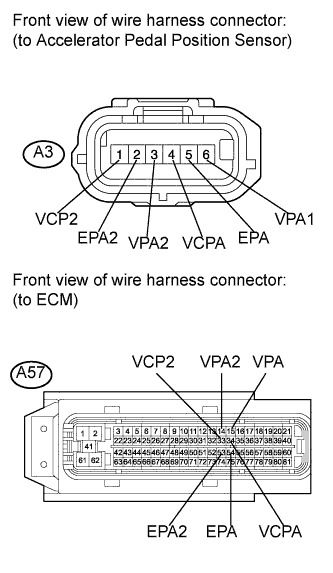

    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0642 Sensor Reference Voltage A Circuit Low

  1. Disconnect the accelerator pedal position sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (check for open):
    Tester Connection
    		Condition
    		Specified Condition
    A3-4 (VCPA) - A57-34 (VCPA)
    		Always
    		Below 1 Ω
    A3-6 (VPA1) - A57-15 (VPA)
    		Always
    		Below 1 Ω
    A3-5 (EPA) - A57-54 (EPA)
    		Always
    		Below 1 Ω
    A3-1 (VCP2) - A57-33 (VCP2)
    		Always
    		Below 1 Ω
    A3-3 (VPA2) - A57-14 (VPA2)
    		Always
    		Below 1 Ω
    A3-2 (EPA2) - A57-53 (EPA2)
    		Always
    		Below 1 Ω
    Standard resistance (check for short):
    Tester Connection
    		Condition
    		Specified Condition
    A3-4 (VCPA) or A57-34 (VCPA) - Body ground
    		Always
    		10 kΩ or higher
    A3-6 (VPA1) or A57-15 (VPA) - Body ground
    		Always
    		10 kΩ or higher
    A3-5 (EPA) or A57-54 (EPA) - Body ground
    		Always
    		10 kΩ or higher
    A3-1 (VCP2) or A57-33 (VCP2) - Body ground
    		Always
    		10 kΩ or higher
    A3-3 (VPA2) or A57-14 (VPA2) - Body ground
    		Always
    		10 kΩ or higher
    A3-2 (EPA2) or A57-53 (EPA2) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the accelerator pedal position sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)
OK


5.INSPECT ECM (VC VOLTAGE)

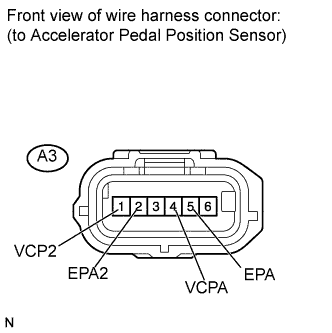

    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0642 Sensor Reference Voltage A Circuit Low

  1. Disconnect the accelerator pedal position sensor connector.

  1. Turn the ignition switch to the ON position.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    A3-1 (VCP2) - A3-2 (EPA2)
    		Ignition switch ON
    		4.5 to 5.5 V
    A3-4 (VCPA) - A3-5 (EPA)
    		Ignition switch ON
    		4.5 to 5.5 V

  1. Reconnect the accelerator pedal position sensor connector.



NG
REPLACE ECM (Нажмите здесь)
OK


6.REPLACE ACCELERATOR PEDAL ASSEMBLY (ACCELERATOR PEDAL POSITION SENSOR)

  1. Replace accelerator pedal assembly (See page Нажмите здесь).


NEXT


7.CHECK WHETHER DTC OUTPUT RECURS (DTC P0642 OR P0643)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Clear the DTCs (See page Нажмите здесь).

  1. Turn the ignition switch off.

  1. Turn the ignition switch to the ON position.

  1. Enter the following menu items: Powertrain / Engine and ECT / DTC.

    Result:
    Result
    		Proceed to
    DTC is not output
    		A
    DTC P0642 or P0643 is output
    		B


B
REPLACE DIESEL THROTTLE BODY ASSEMBLY (INTAKE SHUTTER POSITION SENSOR) (Нажмите здесь)
A

END
