Трансмиссия. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Механическая Трансмиссия C53. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Выключатель Света Заднего Хода -- Снятие |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE BATTERY (for 1ND-TV) |
Loosen the bolt and nut, and remove the battery clamp.
 |
Remove the battery and battery tray.
| 3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (for 1ND-TV) |
Disconnect the mass air flow meter connector.
 |
Disconnect the No. 2 ventilation hose.
Disconnect the 2 clamps and band, and remove the air cleaner cap sub-assembly.
| 4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (for 1ND-TV) |
Remove the 3 bolts and air cleaner case sub-assembly.
 |
| 5. REMOVE NO. 1 AIR TUBE |
Loosen the 2 hose clamps, and remove the 3 bolts and the No. 1 air tube.
 |

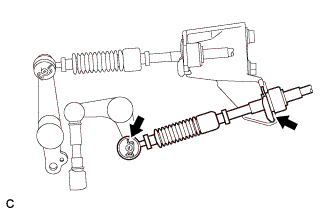

| 6. DISCONNECT TRANSMISSION CONTROL SHIFT CABLE |
 |
Remove the clip and disconnect the shift cable from the transaxle.
Remove the clip and disconnect the shift cable from the control cable bracket.

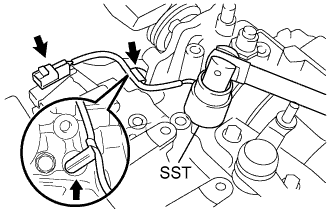

| 7. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY |
 |
Disconnect the back-up light switch connector.
Separate the 2 wire harness clamps.
Using SST, remove the back-up light switch assembly and gasket from the manual transmission case.
- SST
- 09817-16011
