Выключатель Света Заднего Хода -- Установка |
| 1. INSTALL BACK-UP LIGHT SWITCH ASSEMBLY |
Using SST, install the back-up light switch and a new gasket to the transaxle case.
- SST
- 09817-16011
- Момент затяжки:
- 40 Н*м{410 кгс*см, 30 фунт-сила-футов}
 |

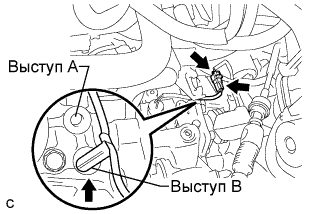

Install the 2 clamps.
- ПРИМЕЧАНИЕ:
- Be sure to use boss B.
 |
Connect the back-up light switch connector.
| 2. CONNECT TRANSMISSION CONTROL SHIFT CABLE |

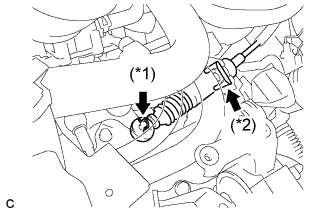

Connect the transmission control shift cable with the clip. (*1)
 |
Connect the transmission control shift cable assembly with a new clip. (*2)
| 3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for 2ZR-FE) |
Install the air cleaner case with the 3 bolts.
- Момент затяжки:
- 7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}
 |
Install the wire harness clamp to the air cleaner case.
Install the air cleaner filter element.
| 4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for 2ZR-FE) |
Connect the air cleaner cap sub-assembly with the band.
 |
Connect the ventilation hose.
Connect the 2 clamps.
 |
Connect the mass air flow meter connector.
| 5. INSTALL NO. 2 CYLINDER HEAD COVER (for 2ZR-FE) |
Install the air cleaner case with the 3 bolts.
- Момент затяжки:
- 7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}
|
Install the wire harness clamp to the air cleaner case.
Install the air cleaner filter element.
| 6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
Connect the negative battery terminal to the battery.
- Момент затяжки:
- 5.5 Н*м{55 кгс*см, 48 фунт-сила-дюймов}
