Головка Блока Цилиндров -- Замена |
| 1. REPLACE INTAKE VALVE GUIDE BUSH |
Gradually heat the cylinder head to approximately 80 to 100°C (176 to 212°F).
 |

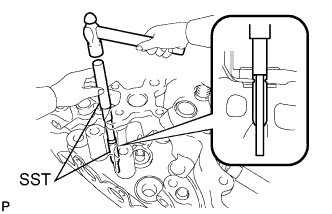

Using SST and a hammer, tap out the valve guide bush.
- SST
- 09201-10000(09201-01060)
09950-70010
 |

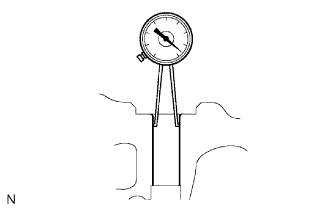

Using a caliper gauge, measure the bush bore diameter of the cylinder head side.
- Maximum diameter:
- 11.056 mm (0.4353 in.)
If the bush bore diameter of the cylinder head is 11.065 mm (0.4356 in.) or more, replace the cylinder head.
 |
Select a new guide bush (STD or O/S 0.05), and measure its diameter.
Machine the bush bore diameter of the cylinder head side to the diameter of the selected guide bush.
- Standard bush bore diameter:
Bush Size Specified value STD 10.985 to 11.006 mm (0.4325 to 0.4333 in.) O/S 0.05 11.035 to 11.056 mm (0.4344 to 0.4353 in.)
Gradually heat the cylinder head to approximately 80 to 100°C (176 to 212°F).
|

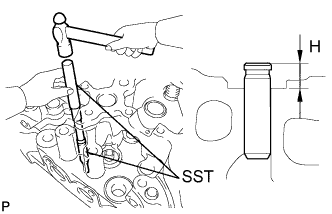

Using SST and a hammer, tap in a new guide bush to the specified protrusion height.
- SST
- 09201-10000(09201-01060)
09950-70010
- Standard protrusion height (H):
- 9.0 to 9.4 mm (0.354 to 0.370 in.)
 |

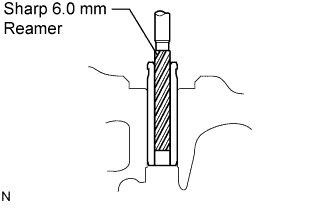

Using a sharp 6.0 mm reamer, ream the guide bush to obtain the standard specified clearance between the guide bush and valve stem.
 |
| 2. REPLACE EXHAUST VALVE GUIDE BUSH |
Gradually heat the cylinder head to approximately 80 to 100°C (176 to 212°F).
|

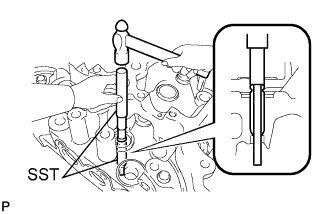

Using SST and a hammer, tap out the valve guide bush.
- SST
- 09201-10000(09201-01060)
09950-70010
 |
Using a caliper gauge, measure the bush bore diameter of the cylinder head side.
- Maximum diameter:
- 11.056 mm (0.4353 in.)
If the bush bore diameter of the cylinder head is 11.065 mm (0.4356 in.) or more, replace the cylinder head.
|
Select a new guide bush (STD or O/S 0.05), and measure its diameter.
Machine the bush bore diameter of the cylinder head side to the diameter of the selected guide bush.
- Standard bush bore diameter:
Bush size Specified value STD 10.985 to 11.006 mm (0.4325 to 0.4333 in.) O/S 0.05 11.035 to 11.056 mm (0.4344 to 0.4353 in.)
Gradually heat the cylinder head to approximately 80 to 100°C (176 to 212°F).
|

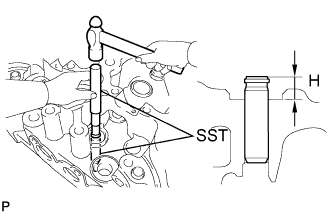

Using SST and a hammer, tap in a new guide bush to the specified protrusion height.
- SST
- 09201-10000(09201-01060)
09950-70010
- Standard protrusion height (H):
- 9.0 to 9.4 mm (0.354 to 0.370 in.)
 |
Using a sharp 6.0 mm reamer, ream the guide bush to obtain the specified clearance between the guide bush and valve stem.
|
| 3. REPLACE CYLINDER HEAD RING PIN |
- ПРИМЕЧАНИЕ:
- It is not necessary to remove the ring pin unless it is being replaced.
Remove the ring pins.
Using a plastic-faced hammer, tap in a new ring pin to the cylinder head.
| 4. REPLACE CYLINDER HEAD TIGHT PLUG |
- ПРИМЕЧАНИЕ:
- If water leaks from the tight plug or the plug corrodes, replace it.
Remove the tight plugs.

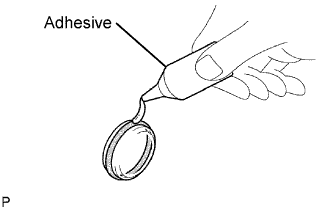

Apply adhesive around 2 new tight plugs.
- Adhesive:
- Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
 |

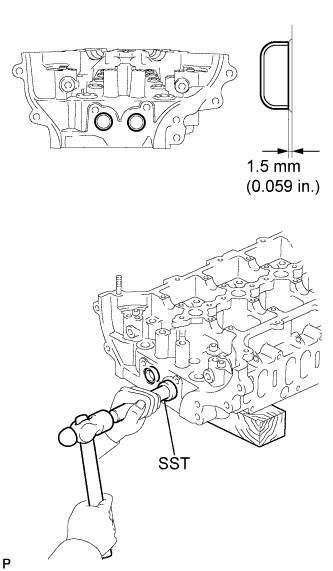

Using SST, tap in the tight plugs to the cylinder head as shown in the illustration.
- SST
- 09950-60010(09951-00250)
09950-70010
 |
| 5. REPLACE CYLINDER HEAD STUD BOLT |
- ПРИМЕЧАНИЕ:
- If the stud bolt is deformed or the threads are damaged, replace it.
Remove the stud bolts.

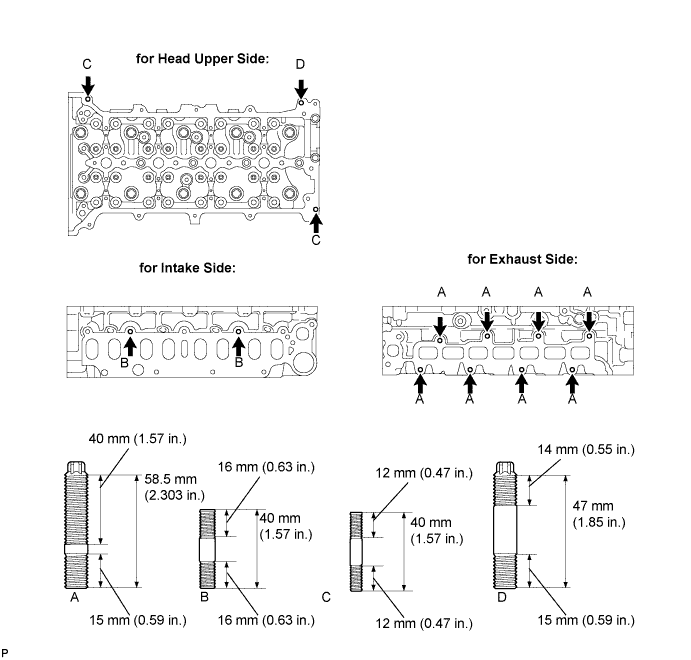

Using an E8 "TORX" socket wrench, install the stud bolts.
- Момент затяжки:
- 12 Н*м{122 кгс*см, 9 фунт-сила-футов}for stud bolt A and B
- 5.0 Н*м{51 кгс*см, 44 фунт-сила-дюймов}for stud bolt C
- 8.0 Н*м{82 кгс*см, 71 фунт-сила-дюймов}for stud bolt D
