Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Охлаждения 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Термостат -- Снятие |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE ENGINE UNDER COVER REAR RH |
Remove the 5 clips and engine under cover rear RH.
| 3. REMOVE NO. 1 ENGINE COVER |
Disengage the 4 pins and remove No. 1 engine cover sub-assembly.
 |
| 4. DRAIN ENGINE COOLANT |
Loosen the radiator drain cock plug.
- УКАЗАНИЕ:
- Collect the coolant in a container and dispose of it according to the regulations in your area.
Remove the radiator reservoir cap.
- ПРЕДОСТЕРЕЖЕНИЕ:
- Do not remove the radiator reservoir cap while the engine and radiator are still hot.
- Pressurized, hot engine coolant and steam may be released and cause serious burns.
Loosen the cylinder block drain cock plug.
- УКАЗАНИЕ:
- The plug is on the backside of the generator on the exhaust manifold side.
| 5. REMOVE V-RIBBED BELT |
 |
Remove the 3 bolts and 2 wire harness clamps, then separate the wire harness.
Loosen bolts A and B.
 |
Remove the v-ribbed belt.
| 6. REMOVE GENERATOR ASSEMBLY |
Remove the terminal cap.
 |
Remove the nut and disconnect the wire harness from terminal B.
Disconnect the generator connector.
Remove the bolt, nut, and fan belt adjusting slider.
 |
Remove the bolt and generator assembly.
 |
| 7. REMOVE WATER INLET |

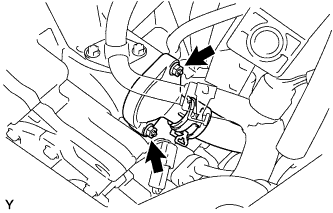

Remove the 2 nuts, then remove the water inlet.
 |
| 8. REMOVE THERMOSTAT |
