  1. INSPECT THERMOSTAT

Термостат -- Проверка



1. INSPECT THERMOSTAT


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
УКАЗАНИЕ:
The valve opening temperature is inscribed on the thermostat.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Immerse the thermostat in water, then gradually heat the water.

  1. Check the valve opening temperature of the thermostat.

    Valve opening temperature:
    80 to 84°C (176 to 183°F)
    If the valve opening temperature is not as specified, replace the thermostat.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Термостат Проверка

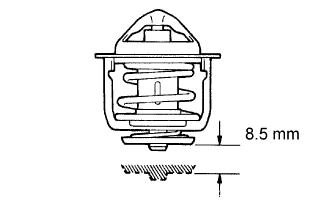

  1. Check the valve lift.

    Valve lift:
    8.5 mm (0.33 in.) or more at 95°C (203°F)

  1. Check that the valve is fully closed when the thermostat is at low temperatures (below 77°C (171°F)).
    If not fully closed, replace the thermostat.
