  1. INSPECT GLOW PLUG ASSEMBLY

Свеча Накаливания -- Проверка Без Снятия С Автомобиля



1. INSPECT GLOW PLUG ASSEMBLY

  1. Remove the glow plug connector (See page Нажмите здесь).



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Запуска 1Nd-Tv.Система Запуска.Свеча Накаливания Проверка Без Снятия С Автомобиля

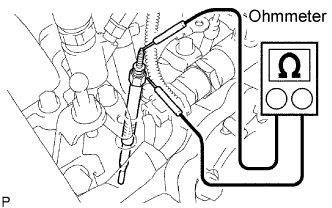

  1. Using an ohmmeter, measure the resistance between the glow plug terminal and ground.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified condition
    Glow plug terminal - Ground
    		20°C (68°F)
    		0.55 to 0.68 Ω
    ПРИМЕЧАНИЕ:
    1. Do not damage the glow plug pipes as this could cause an open circuit or shorten the life of the glow plugs.
    2. Prevent oil and fuel from spraying onto the glow plugs when cleaning.
    3. Wipe any oil off the terminal and the Bakelite washer with a dry cloth if they are stained with oil during the inspection.
    If the result is not as specified, replace the glow plug.

  1. Install the glow plug connector (See page Нажмите здесь).
