Масляный Насос Разборка. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Смазки 2Ad-Fhv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE OIL PUMP COVER

  2. REMOVE OIL PUMP RELIEF VALVE

Масляный Насос -- Разборка



1. REMOVE OIL PUMP COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

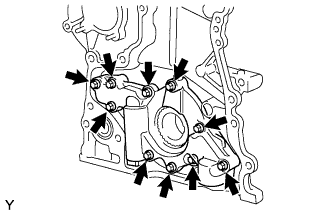

  1. Remove the 10 bolts, oil pump cover, drive rotor, and driven rotor.

    ПРИМЕЧАНИЕ:
    Be careful not to damage the drive and driven rotors.


2. REMOVE OIL PUMP RELIEF VALVE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

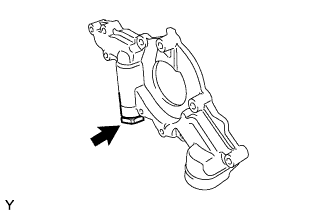

  1. Using a 27 mm socket wrench, remove the plug.

  1. Remove the valve spring and oil pump relief valve.
