Масляный Насос Разборка. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Смазки 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE OIL PUMP BODY

  2. REMOVE OIL PUMP DRIVE AND DRIVEN ROTORS

  3. REMOVE OIL PUMP RELIEF VALVE

Масляный Насос -- Разборка



1. REMOVE OIL PUMP BODY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 1Nd-Tv.Система Смазки.Масляный Насос Разборка

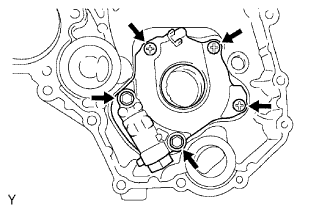

  1. Remove the 2 bolts, 3 screws, and oil pump body.



2. REMOVE OIL PUMP DRIVE AND DRIVEN ROTORS


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 1Nd-Tv.Система Смазки.Масляный Насос Разборка

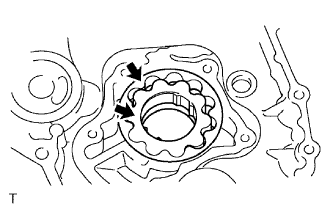

  1. Remove the oil pump drive and driven rotors from the oil pump.



3. REMOVE OIL PUMP RELIEF VALVE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 1Nd-Tv.Система Смазки.Масляный Насос Разборка

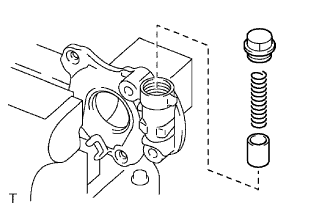

  1. Remove the oil pump relief valve plug, oil pump relief valve spring, and oil pump relief valve.
