Трос Механизма Переключения Передач (Для Моделей С Кузовом Типа Седан) Установка. Corolla ZZE150
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
ADJUST TRANSMISSION CONTROL SELECT CABLE
INSTALL REAR CONSOLE BOX ASSEMBLY
INSTALL CONSOLE BOX CARPET
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
INSTALL FRONT NO. 1 CONSOLE BOX INSERT
INSTALL FRONT NO. 2 CONSOLE BOX INSERT
INSTALL INSTRUMENT PANEL BOX ASSEMBLY
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH
INSTALL NO. 1 FRONT FLOOR HEAT INSULATOR
INSTALL FRONT EXHAUST PIPE ASSEMBLY
CONNECT HEATED OXYGEN SENSOR
INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for 2ZR-FE)
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for 2ZR-FE)
INSTALL NO. 2 CYLINDER HEAD COVER (for 2ZR-FE)
INSTALL BATTERY TRAY
INSTALL BATTERY (for 2ZR-FE)
INSTALL RADIATOR UPPER AIR DEFLECTOR
INSPECT FOR EXHAUST GAS LEAK (for 2ZR-FE)
Трос Механизма Переключения Передач (Для Моделей С Кузовом Типа "Седан") -- Установка |
1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY |
Install the transmission control cable assembly with the 2 nuts and bolt.
- Момент затяжки:
- 5.0 Н*м{51 кгс*см, 44 фунт-сила-дюймов}

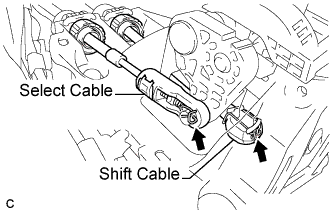

Install the 2 transmission control cables to the control cable bracket with 2 new clips. (*1)
Install the 2 transmission control cables to the manual transaxle with the 2 clips.
Rotate the transmission control cable nut counterclockwise approximately 180° and, while holding the nut in that position, press in the stopper until it makes 2 "click" sounds.
Install the cable outer of the transmission control cable to the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and press in the stopper.
- УКАЗАНИЕ:
- If the stopper cannot be pressed in, slightly rotate the nut clockwise and then press in the stopper.
Install the control shift cable to the shift lever assembly.
Install the control select cable to the shift lever assembly.
Install the clip to the shift lever.
2. ADJUST TRANSMISSION CONTROL SELECT CABLE |
3. INSTALL REAR CONSOLE BOX ASSEMBLY |
Вверните 2 винта.
Установите вещевой ящик в облицовке туннеля пола и закрепите его 4 болтами.
4. INSTALL CONSOLE BOX CARPET |
Установите коврик вещевого ящика в облицовке туннеля пола.
5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY |
Установите верхнюю панель консоли и закрепите ее 8 фиксаторами.
6. INSTALL FRONT NO. 1 CONSOLE BOX INSERT |
Введите в зацепление направляющую.
Введите в зацепление 3 захвата и установите переднюю вставку вещевого ящика в облицовке туннеля пола № 1.
7. INSTALL FRONT NO. 2 CONSOLE BOX INSERT |
Введите в зацепление направляющую.
Введите в зацепление 3 захвата и установите переднюю вставку вещевого ящика в облицовке туннеля пола № 2.
8. INSTALL INSTRUMENT PANEL BOX ASSEMBLY |
Введите в зацепление 2 захвата.
Установите ящик панели приборов и закрепите ее 2 винтами <B>.
9. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
Введите в зацепление 2 захвата и 2 фиксатора и установите центральную облицовку панели управления.
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY |
Поверните рукоятку рычага переключения передач по часовой стрелке и закрепите ее.
11. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH |
Введите в зацепление 3 захвата и фиксатор и установите левую нижнюю отделочную накладку панели приборов.
12. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH |
Введите в зацепление 4 фиксатора и установите правую отделочную накладку панели приборов.
13. INSTALL NO. 1 FRONT FLOOR HEAT INSULATOR |
Install the No. 1 front floor heat insulator with the 3 nuts.
- Момент затяжки:
- 5.5 Н*м{56 кгс*см, 49 фунт-сила-дюймов}
14. INSTALL FRONT EXHAUST PIPE ASSEMBLY |
Using vernier calipers, measure the free length of the compression springs.
Minimum (front)
| 41.5 mm (1.63 in.)
|
Minimum (rear)
| 38.5 mm (1.52 in.)
|
- УКАЗАНИЕ:
- If the free length is less than the minimum, replace the compression spring.
Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the exhaust manifold.
- ПРИМЕЧАНИЕ:
- Be careful with the installation direction of the gasket.
- Do not reuse the gasket.
- Do not damage the gasket.
- Do not push in the gasket by using the exhaust pipe when connecting it.
Install the exhaust pipe support, and then install the front exhaust pipe assembly with the 2 compression springs and 2 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the front exhaust pipe assembly.
- ПРИМЕЧАНИЕ:
- Be careful with the installation direction of the gasket.
- Do not reuse the gasket.
- Do not damage the gasket.
- Do not push in the gasket by using the exhaust pipe when connecting it.
Connect the front exhaust pipe assembly to the center exhaust pipe assembly with the 2 compression springs and 2 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
15. CONNECT HEATED OXYGEN SENSOR |
Connect the oxygen sensor connector.
16. INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for 2ZR-FE) |
Install the air cleaner case with the 3 bolts.
- Момент затяжки:
- 7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}
Install the wire harness clamp to the air cleaner case.
Install the air cleaner filter element.
17. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for 2ZR-FE) |
Connect the air cleaner cap sub-assembly with the band.
Connect the ventilation hose.
Connect the 2 clamps.
Connect the mass air flow meter connector.
18. INSTALL NO. 2 CYLINDER HEAD COVER (for 2ZR-FE) |
Engage the 4 clips to install the V-bank cover.
- ПРИМЕЧАНИЕ:
- Be sure to engage the clips securely.
- Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
20. INSTALL BATTERY (for 2ZR-FE) |
Install the battery clamp.
- Момент затяжки:
- for bolt:
- 17 Н*м{168 кгс*см, 12 фунт-сила-футов}
- for nut:
- 3.5 Н*м{36 кгс*см, 31 фунт-сила-дюймов}
Install the battery terminal.
- Момент затяжки:
- 5.4 Н*м{55 кгс*см, 48 фунт-сила-дюймов}
21. INSTALL RADIATOR UPPER AIR DEFLECTOR |
22. INSPECT FOR EXHAUST GAS LEAK (for 2ZR-FE) |
Check that there are no exhaust gas leaks from the points (joints of the exhaust pipes and installation points of each sensor) shown in the illustration.
