Нагнетающий Топливный Насос Проверка. Corolla Auris

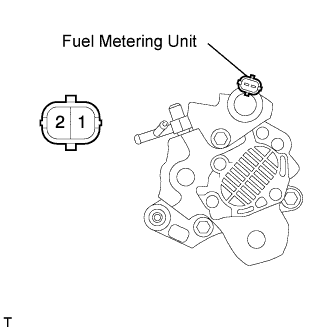

Check the resistance of the fuel metering unit.

1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	2.60 to 3.15 Ω

   If the result is not as specified, replace the supply pump assembly.


Check the resistance of the fuel temperature sensor.

1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	-20°C (-4°F)	13.92 to 17.01 Ω
   1 - 2	0°C (32°F)	5.31 to 6.49 Ω
   1 - 2	20°C (68°F)	2.25 to 2.75 Ω
   1 - 2	40°C (104°F)	1.06 to 1.29 Ω
   1 - 2	60°C (140°F)	0.54 to 0.66 Ω
   1 - 2	80°C (176°F)	0.29 to 0.36 Ω
   1 - 2	100°C (212°F)	0.17 to 0.20 Ω

   If the result is not as specified, replace the supply pump assembly.
