Головка Блока Цилиндров Повторная Сборка. Corolla Auris
Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
INSTALL WITH HEAD NO. 1 TAPER SCREW PLUG
INSTALL VALVE ROCKER ARM PIVOT
INSTALL VALVE SPRING SEAT PLATE WASHER
INSTALL VALVE STEM OIL O SEAL OR RING
INSTALL INTAKE VALVE
INSTALL EXHAUST VALVE
Головка Блока Цилиндров -- Повторная Сборка |
| 1. INSTALL WITH HEAD NO. 1 TAPER SCREW PLUG |
Install a new gasket onto the plug.
Using a 6 mm socket hexagon wrench, install the No. 1 taper screw plug.
- Момент затяжки:
- 25 Н*м{255 кгс*см, 18 фунт-сила-футов}
| 2. INSTALL VALVE ROCKER ARM PIVOT |
Install the valve rocker arm pivot onto the cylinder head sub-assembly.
- Момент затяжки:
- 30 Н*м{306 кгс*см, 22 фунт-сила-футов}
| 3. INSTALL VALVE SPRING SEAT PLATE WASHER |
Install the valve spring seat plate washer onto the cylinder head sub-assembly.
| 4. INSTALL VALVE STEM OIL O SEAL OR RING |

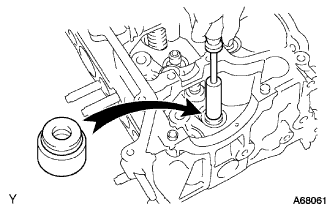

Apply a light coat of engine oil to the lip of a new valve stem oil seal or ring.
Install the intake valve, outer compression spring and valve spring retainer onto the cylinder head.
Using SST, install the valve spring retainer lock.
- SST
- 09202-70020

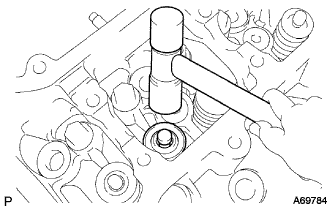

Using a plastic-faced hammer, lightly tap the valve stem tip to ensure that it fits properly.
- ПРИМЕЧАНИЕ:
- Do not damage the tip of the valve stem.
Apply a light coat of engine oil to the valve stem cap.
Install the exhaust valve, outer compression spring and valve spring retainer onto the cylinder head.
Using SST, install the valve spring retainer lock.
- SST
- 09202-70020
Using a plastic-faced hammer, lightly tap the valve stem tip to ensure that it fits properly.
- ПРИМЕЧАНИЕ:
- Do not damage the tip of the valve stem.
Apply a light coat of engine oil to the valve stem cap.
