Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Датчик Положения Коленчатого Вала -- Проверка |

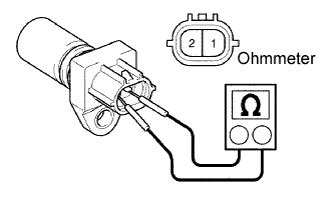

| 1. INSPECT CRANKSHAFT POSITION SENSOR |
Check the resistance.
Using an ohmmeter, measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition 1 (Ne+) - 2 (Ne-) Cold 1630 to 2740 Ω 1 (Ne+) - 2 (Ne-) Hot 2065 to 3225 Ω
- УКАЗАНИЕ:
- "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from -10 to 50°C (14 to 122°F) and "Hot" is from 50 to 100°C (122 to 212°F).
 |
