  1. REMOVE FRONT BUMPER COVER (for Sedan)

  2. REMOVE FRONT BUMPER COVER (for Hatchback)

  3. DISCONNECT NO. 3 AIR HOSE

  4. DISCONNECT NO. 2 AIR HOSE

  5. REMOVE VACUUM HOSE

  6. REMOVE NO. 2 RADIATOR SUPPORT

  7. REMOVE INTERCOOLER ASSEMBLY

Промежуточный Охладитель -- Снятие



1. REMOVE FRONT BUMPER COVER (for Sedan)
(See page Нажмите здесь)


2. REMOVE FRONT BUMPER COVER (for Hatchback)
(See page Нажмите здесь)


3. DISCONNECT NO. 3 AIR HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

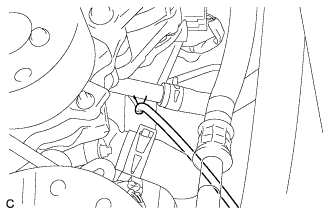

  1. Loosen the hose clamp, and disconnect the No. 3 air hose.



4. DISCONNECT NO. 2 AIR HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Loosen the hose clamp, and disconnect the No. 2 air hose.



5. REMOVE VACUUM HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the vacuum hose.



6. REMOVE NO. 2 RADIATOR SUPPORT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 5 bolts and No. 2 radiator support sub-assembly.



7. REMOVE INTERCOOLER ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts and intercooler assembly.
