  1. REMOVE RADIATOR DRAIN COCK PLUG

  2. REMOVE UPPER RADIATOR TANK

  3. REMOVE LOWER RADIATOR TANK

Радиатор -- Разборка



1. REMOVE RADIATOR DRAIN COCK PLUG

  1. Remove the drain plug.

  1. Remove the O-ring.



2. REMOVE UPPER RADIATOR TANK


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Радиатор Разборка

  1. Install the claw to the overhaul handle, inserting it in the hole in part A as shown in the illustration.

    SST
    09230-01010(09231-01010,09231-01030)

  1. While gripping the handle, adjust the stopper bolt so that dimension B is as shown in the illustration.

    Dimension B:
    0.2 to 0.3 mm (0.008 to 0.012 in.)
    ПРИМЕЧАНИЕ:
    If the stopper bolt is not adjusted, the claw may be damaged.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Радиатор Разборка

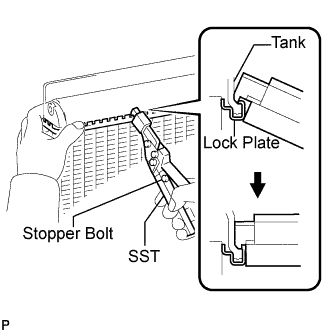

  1. Using SST to release the caulking, grip the handle until stopped by the stopper bolt.

    SST
    09230-01010(09231-01010,09231-01030)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Радиатор Разборка

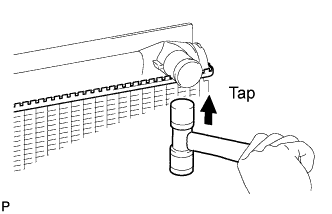

  1. Lightly tap the bracket of the radiator (or radiator hose inlet or outlet) with a soft-faced hammer and remove the tank.

  1. Remove the O-ring.



3. REMOVE LOWER RADIATOR TANK
УКАЗАНИЕ:
Removal procedure of the radiator tank lower is the same as that of the radiator tank upper.
