  1. INSPECT SUPPLY PUMP ASSEMBLY

Нагнетающий Топливный Насос -- Проверка



1. INSPECT SUPPLY PUMP ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Топливная Система 1Ad-Ftv.Топливная Система.Нагнетающий Топливный Насос Проверка

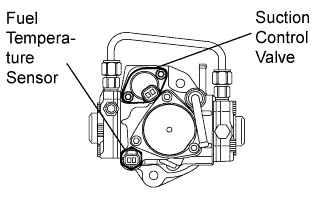

  1. Resistance inspection. (Suction control valve)

    1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Terminals
      		Condition
      		Resistance
      1 - 2
      		20°C (68°F)
      		1.9 to 2.3 Ω
      УКАЗАНИЕ:
      The temperature indicated in "Condition" refers to the temperature of the suction control valve.
      If the result is not as specified, replace the supply pump assembly.

  1. Resistance inspection. (Fuel temperature sensor)

    1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Terminals
      		Condition
      		Resistance
      1 - 2
      		20°C (68°F)
      		2.32 to 2.59 Ω
      1 - 2
      		80°C (176°F)
      		0.310 to 0.326 Ω
      If the result is not as specified, replace the supply pump assembly.
