Топливная Система Common Rail Проверка. Corolla Auris

Check the resistance. (Fuel pressure sensor)

1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.


   УКАЗАНИЕ:

   Perform the inspection with no fuel pressure applied.

   Standard resistance:

   Tester Connection	Specified Condition
   5 (PR) - 4 (E2)	16.4 Ω or less
   2 (PR2) - 3 (E2S)	16.4 Ω or less
   6 (VC) - 5 (PR)	3 kΩ or less
   1 (VCS) - 2 (PR2)	3 kΩ or less

   If the result is not as specified, replace the common rail assembly.

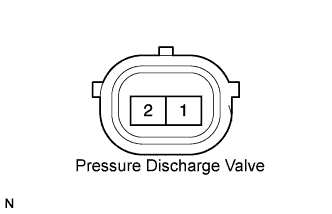

Check the resistance. (Pressure discharge valve)

1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.


   Standard resistance:

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	0.85 to 1.05 Ω

   УКАЗАНИЕ:

   The temperature indicated in "Condition" is the temperature of the pressure discharge valve.

   If the result is not as specified, replace the common rail assembly.
