Стартер (Для 1,1 Квт) -- Снятие |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE NO. 1 ENGINE COVER |
Disengage the 4 pins and remove No. 1 engine cover sub-assembly.
 |
| 3. REMOVE NO. 1 ENGINE UNDER COVER |
| 4. REMOVE STARTER ASSEMBLY (for Multi-Mode Manual Transaxle) |
 |

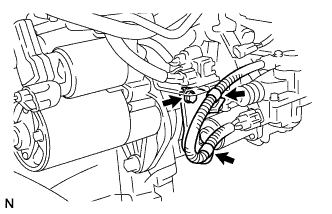

Separate the harness clamp.
Remove the bolt and the wire harness bracket.
Remove the terminal cap.
 |
Separate the harness clamp.
Remove the nut and disconnect terminal 30.
Disconnect the connector.
Remove the 2 bolts and remove the starter assembly.
| 5. REMOVE STARTER ASSEMBLY (for Manual Transaxle) |
|
Remove the terminal cap.
Separate the harness clamp.
Remove the nut and disconnect terminal 30.
Disconnect the connector.
Remove the 2 bolts and remove the starter assembly.
