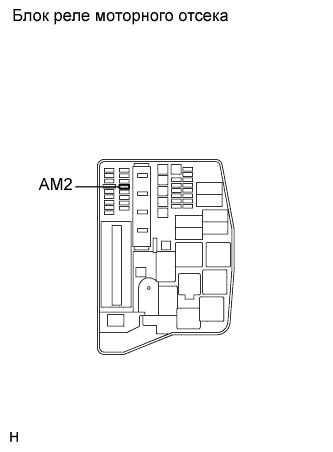

INSPECT FUSE (AM2 FUSE)

СИСТЕМА ECD - Цепь функции полуавтоматического запуска двигателя


DESCRIPTION

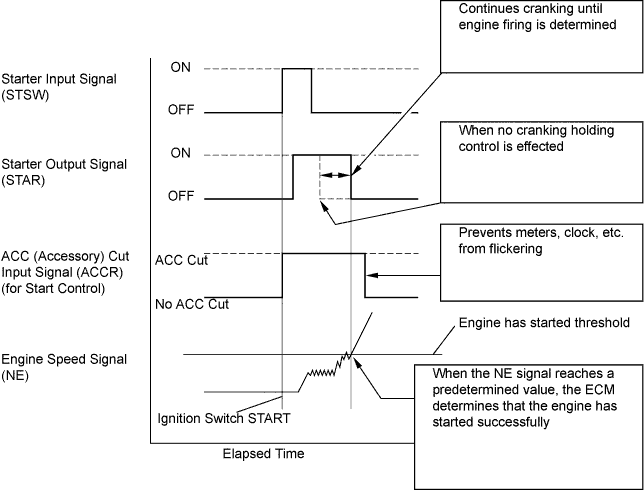

The cranking holding control system keeps energizing the ST relay after the ECM detects the starter signal (STSW signal) from the main body ECU until the ECM performs a judgment of "Engine started". Furthermore, the ECM outputs an accessory cut signal (ACCR signal) to the ACC relay during cranking to prevent flickering of the combination meter, clock, audio system, and other areas.
When the ECM detects the STSW signal, the ECM outputs the starter relay drive signal (STAR signal) to the starter relay through the clutch pedal switch, and then the engine is cranked. When the ECM receives a stable engine speed signal (NE signal) (more specifically, when the NE signal reaches a predetermined value), the ECM stops outputting the STAR signal. Also, the ECM monitors the ST relay operating conditions based on the STA terminal voltage status.

COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

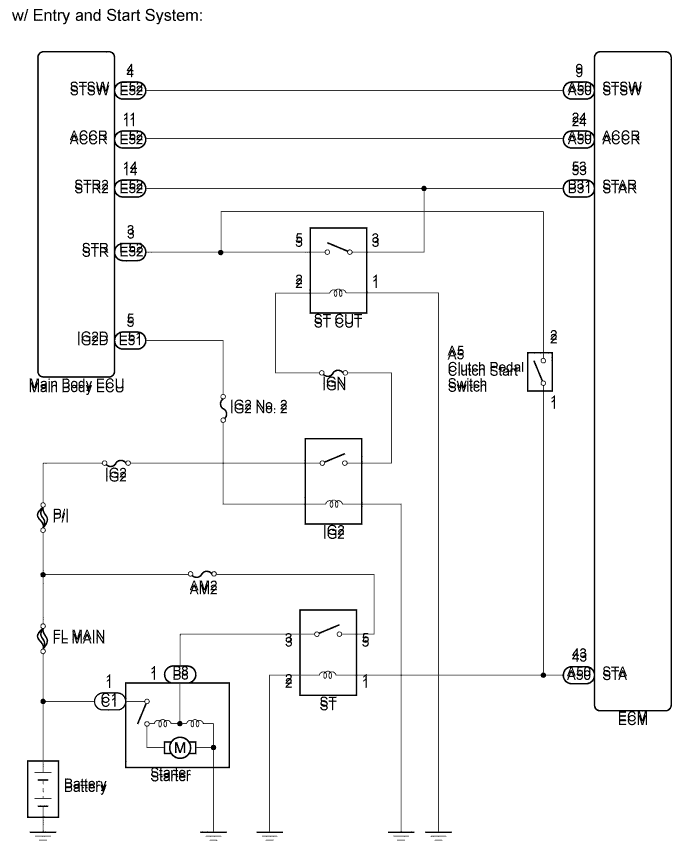

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя


INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:
After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).
1.READ VALUE OF INTELLIGENT TESTER (STARTER SIGNAL)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Enter the following menu items: Powertrain / Engine and ECT / Data List / Starter Signal.

  1. Check the result when the ignition switch is turned on (IG).

  1. Check the result when the engine starts.

    OK:
    Ignition Switch Condition
    		Tester Display (Starter Signal)
    On (IG)
    		OFF
    Engine starts
    		ON

    Result:

    Result
    		Proceed to
    NG
    		A
    OK
    		B


B
Перейдите к шагу 13
A

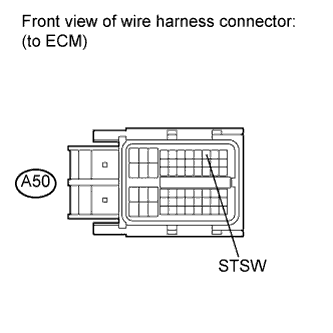

2.CHECK ECM (STSW TERMINAL VOLTAGE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the ECM connector.

  1. Depress the clutch pedal fully.

  1. Measure the voltage between the ECM terminal and body ground when operating the ignition switch to start cranking.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    A50-9 (STSW) - Body ground
    		Engine start (does not cranking)
    		11 to 14 V

  1. Reconnect the ECM connector.



NG
Перейдите к шагу 5
OK


3.CHECK CLUTCH PEDAL SWITCH (INPUT VOLTAGE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the clutch pedal switch connector.

  1. Measure the voltage between the terminal of the clutch pedal switch connector and body ground while cranking the engine.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    A5-2 - Body ground
    		Engine start (does not cranking)
    		11 to 14 V

  1. Reconnect the clutch pedal switch connector.



NG
Перейдите к шагу 6
OK

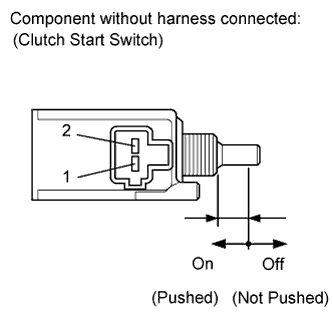

4.INSPECT CLUTCH PEDAL SWITCH


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the clutch pedal switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Switch Condition
    		Condition
    		Specified Condition
    Pushed
    		Always
    		Below 1 Ω
    Not pushed
    		Always
    		10 kΩ or higher

  1. Reconnect the clutch pedal switch connector.



NG
REPLACE CLUTCH PEDAL SWITCH (Нажмите здесь)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH PEDAL SWITCH - ECM)

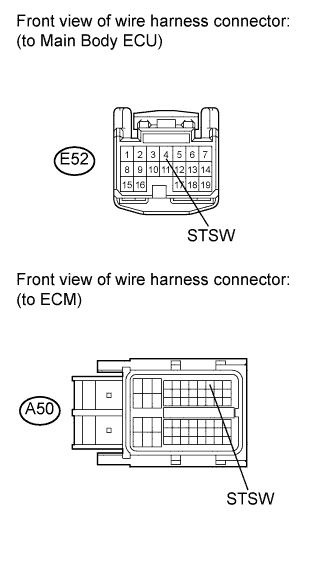

5.CHECK HARNESS AND CONNECTOR (ECM - MAIN BODY ECU)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the main body ECU connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    E52-4 (STSW) - A50-9 (STSW)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    E52-4 (STSW) or A50-9 (STSW) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the main body ECU connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - MAIN BODY ECU)
OK

CHECK ENTRY AND START SYSTEM (Нажмите здесь)

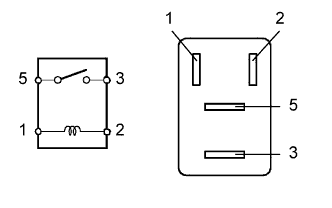

6.INSPECT ST CUT RELAY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST CUT relay from the No. 6 relay block.

  1. Measure the resistance.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Battery voltage is not applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is applied between terminals 1 and 2
    		Below 1 Ω

  1. Reinstall the ST CUT relay.



NG
REPLACE ST CUT RELAY
OK

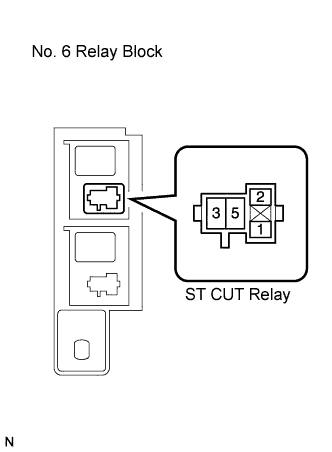

7.CHECK HARNESS AND CONNECTOR (ST CUT RELAY - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST CUT relay from the No. 6 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    ST CUT relay terminal 1 - Body ground
    		Always
    		Below 1 Ω

  1. Reinstall the ST CUT relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - BODY GROUND)
OK


8.INSPECT IGN FUSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the IGN fuse form the instrument panel junction block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    IGN fuse
    		Always
    		Below 1 Ω

  1. Reconnect the IGN fuse.



NG
REPLACE FUSE (IGN FUSE)
OK

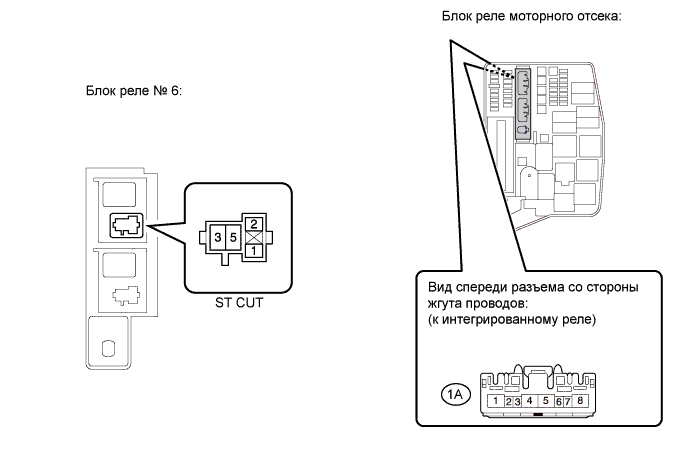

9.CHECK HARNESS AND CONNECTOR (ST CUT RELAY - IG2 RELAY)


  1. Remove the ST CUT relay from the No. 6 relay block.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1A-4 - ST CUT relay terminal 2
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1A-4 or ST CUT relay terminal 2 - Body ground
    		Always
    		10 kΩ or higher

  1. Reinstall the ST CUT relay.

  1. Reconnect the integration connector.

  1. Reinstall the integration relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - IG2 RELAY)
OK

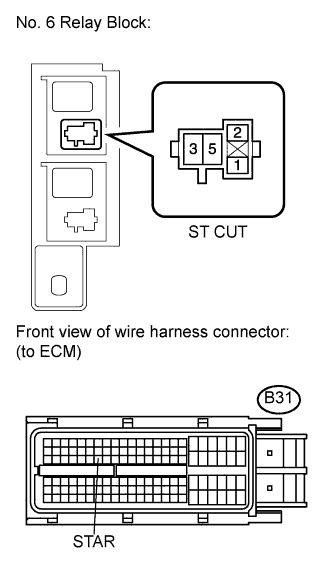

10.CHECK HARNESS AND CONNECTOR (ST CUT RELAY - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the ECM connector.

  1. Remove the ST CUT relay from the No. 6 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    ST CUT relay terminal 3 - B31-53 (STAR)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    ST CUT relay terminal 3 or B31-53 (STAR) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the ECM connector.

  1. Reinstall the ST CUT relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - ECM)
OK

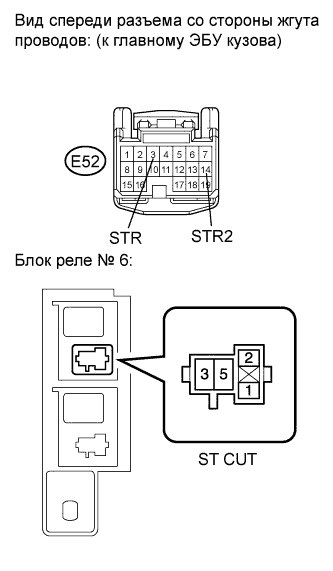

11.CHECK HARNESS AND CONNECTOR (ST CUT RELAY - MAIN BODY ECU)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the main body ECU connector.

  1. Remove the ST CUT relay from the No. 6 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    ST CUT relay terminal 3 - E52-14 (STR2)
    		Always
    		Below 1 Ω
    ST CUT relay terminal 5 - E52-3 (STR)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    ST CUT relay terminal 3 or E52-14 (STR2) - Body ground
    		Always
    		10 kΩ or higher
    ST CUT relay terminal 5 or E52-3 (STR) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the main body ECU connector.

  1. Reinstall the ST CUT relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST CUT RELAY - MAIN BODY ECU)
OK

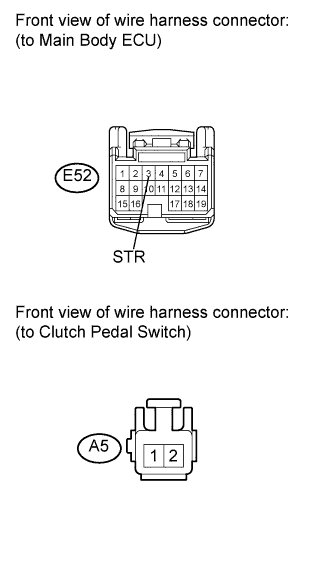

12.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - CLUTCH PEDAL SWITCH)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Disconnect the main body ECU connector.

  1. Disconnect the clutch pedal switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    E52-3 (STR) - A5-2
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    E52-3 (STR) or A5-2 - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the main body ECU connector.

  1. Reconnect the clutch pedal switch connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU - CLUTCH PEDAL SWITCH)
OK

REPLACE ECM

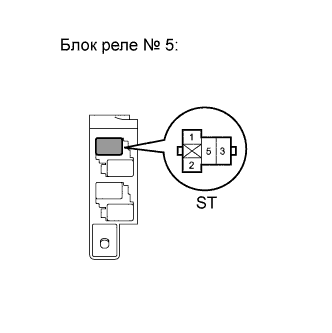

13.CHECK ST RELAY (ST RELAY VOLTAGE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    ST relay terminal 1 - Body ground
    		Engine cranking position
    		11 to 14 V

  1. Reinstall the ST relay from the No. 5 relay block.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - ST RELAY)
OK


14.INSPECT ST RELAY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Battery voltage is not applied between terminals 1 and 2
    		10 kΩ or higher
    3 - 5
    		Battery voltage is applied between terminals 1 and 2
    		Below 1 Ω

  1. Reinstall the ST relay.



NG
REPLACE ST RELAY
OK


15.CHECK HARNESS AND CONNECTOR (ST RELAY - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Condition
    ST relay terminal 2 - Body ground
    		Always
    		Below 1 Ω

  1. Reinstall the ST relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - BODY GROUND)
OK


16.CHECK ST RELAY INPUT VOLTAGE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    ST relay terminal 5 - Body ground
    		Ignition switch ON (IG)
    		11 to 14 V

  1. Reinstall the ST relay.



NG
Перейдите к шагу 19
OK

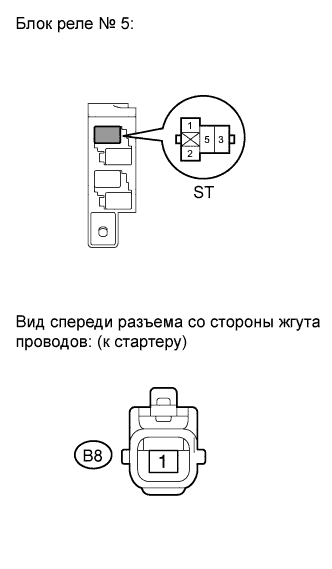

17.CHECK HARNESS AND CONNECTOR (ST RELAY - STARTER)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the ST relay from the No. 5 relay block.

  1. Disconnect the starter connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 3 - B8-1
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 3 or B8-1 - Body ground
    		Always
    		10 kΩ or higher

  1. Reinstall the ST relay.

  1. Reconnect the starter connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY STARTER)
OK


18.INSPECT STARTER

  1. Inspect the starter (See page Нажмите здесь).



NG
REPLACE STARTER (Нажмите здесь)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STARTER)

19.INSPECT FUSE (AM2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Функции Полуавтоматического Запуска Двигателя

  1. Remove the AM2 fuse from engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    AM2 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the AM2 fuse.



NG
REPLACE FUSE (AM2 FUSE)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - ST RELAY)
