СИСТЕМА ECD - Цепь контрольной лампы неисправности MIL


DESCRIPTION

The MIL (Malfunction Indicator Lamp) is used to indicate vehicle malfunction detections by the ECM. By turning the ignition switch to the ON position, power is supplied to the MIL circuit, and the ECM provides the circuit ground which illuminates the MIL.
The MIL operation can be checked visually: When the ignition switch is first turned to the ON position, the MIL illuminates and then goes off. If the MIL remains illuminated or is not illuminated, conduct the following troubleshooting procedure using an intelligent tester.

WIRING DIAGRAM

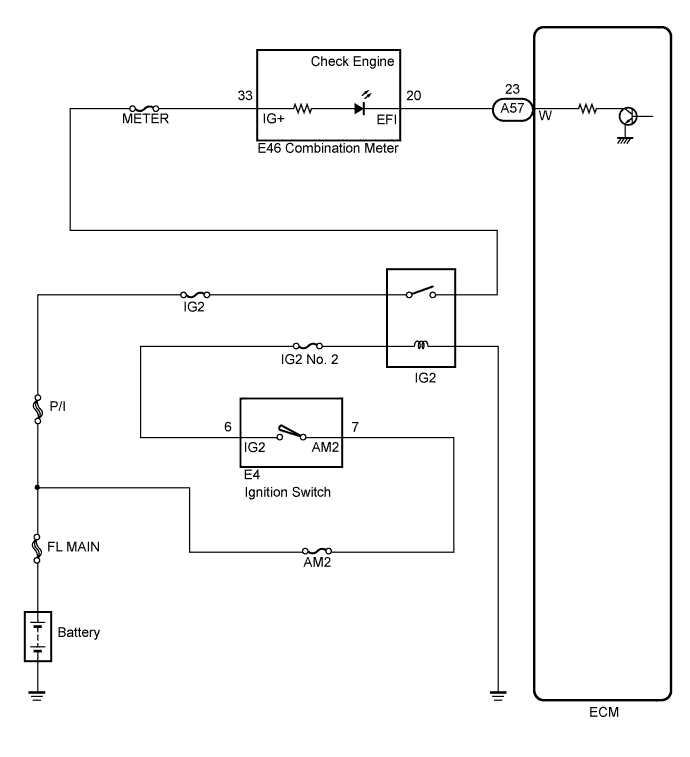

COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil


INSPECTION PROCEDURE

1.CHECK MIL CONDITION

  1. Perform troubleshooting in accordance with the chart below.

    Result:
    MIL Condition
    		Proceed to
    MIL remains ON
    		A
    MIL does not illuminate
    		B


B
Перейдите к шагу 5
A


2.CHECK WHETHER MIL TURNS OFF

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Turn the tester on.

  1. Check whether any DTCs have been stored (See page Нажмите здесь). Note them down if necessary.

  1. Clear the DTCs (See page Нажмите здесь).

  1. Check if the MIL goes off.

    OK:
    The MIL goes off.


NG
Перейдите к шагу 3
OK

REPLACE CIRCUITS INDICATED BY OUTPUT DTCS (Нажмите здесь)

3.CHECK HARNESS AND CONNECTOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil

  1. Disconnect the ECM connector.

  1. Turn the ignition switch to the ON position.

  1. Check that MIL is not illuminated.

    OK:
    The MIL is not illuminated.

  1. Reconnect the ECM connector.



NG
Перейдите к шагу 4
OK

REPLACE ECM (Нажмите здесь)

4.CHECK HARNESS AND CONNECTOR (ECM - COMBINATION METER)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd.Система Ecd Цепь Контрольной Лампы Неисправности Mil

  1. Disconnect the ECM connector.

  1. Disconnect the combination meter connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition

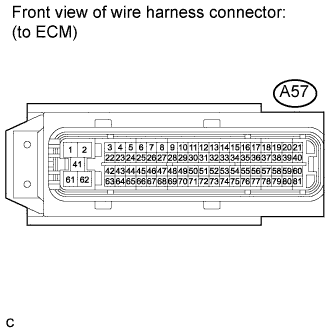

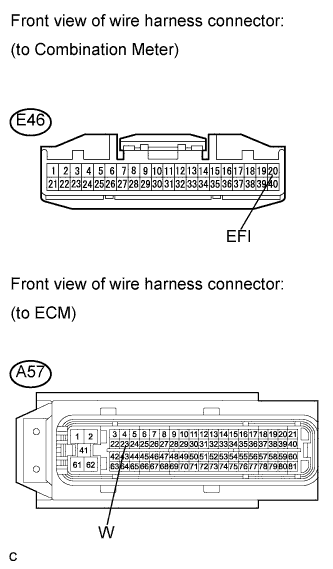

    A57-23 (W) or E46-20 (EFI) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the ECM connector.

  1. Reconnect the combination meter connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - COMBINATION METER)
OK

REPAIR OR REPLACE COMBINATION METER ASSEMBLY (Нажмите здесь)

5.CHECK THAT MIL IS ILLUMINATED

  1. Check if the MIL illuminates when turning the ignition switch to the ON position.

    OK:
    MIL illuminates.


NG
Перейдите к шагу 6
OK

END

6.CHECK THAT ENGINE STARTS

  1. Turn the ignition switch to the ON position.

  1. Check whether the engine starts.

    Result:
    Result
    		Proceed to
    Engine starts
    		A
    Engine does not start *
    		B
    УКАЗАНИЕ:
    *: The intelligent tester cannot communicate with the ECM.


B
GO TO VC OUTPUT CIRCUIT (Нажмите здесь)
A


7.INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)

  1. See the combination meter troubleshooting procedure (See page Нажмите здесь).

    OK:
    The MIL illuminates.


NG
REPAIR OR REPLACE COMBINATION METER ASSEMBLY
OK

CHECK AND REPLACE HARNESS AND CONNECTOR (COMBINATION METER - ECM)
