Топливная Форсунка Установка. Corolla Auris

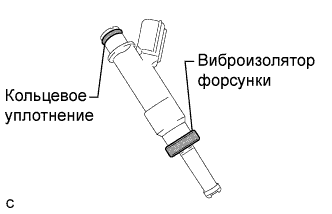

Install a new injector vibration insulator to the fuel injector assembly.

Apply a light coat of gasoline or spindle oil to the contact surfaces of the the O-ring of the fuel injector assembly.

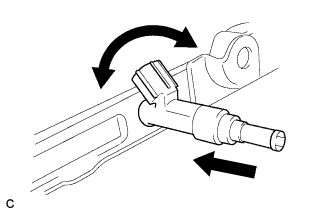

While turning the fuel injector assembly left and right, install it onto the fuel delivery pipe sub-assembly.

ПРИМЕЧАНИЕ:

1. Do not twist the O-ring.

2. After installing the fuel injectors, check that they turn smoothly. If not, replace the O-ring with a new one.


Install the 2 No. 1 delivery pipe spacers onto the cylinder head.

ПРИМЕЧАНИЕ:

Install the No. 1 delivery pipe spacers in the correct direction.

Install the fuel delivery pipe sub-assembly with the 4 fuel injector assemblies then temporarily install the 2 bolts.

ПРИМЕЧАНИЕ:

1. Do not drop the fuel injectors when installing the fuel delivery pipe sub-assembly.

2. Check that the fuel injector assemblies rotate smoothly after installing the fuel delivery pipe sub-assembly.


Tighten the 2 bolts to the specified torque.

Момент затяжки:

21 Н*м{214 кгс*см, 15 фунт-сила-футов}

Install the bolt to secure the fuel delivery pipe sub-assembly.

Момент затяжки:

21 Н*м{214 кгс*см, 15 фунт-сила-футов}

Install the wire harness bracket with the bolt.

Insert the fuel tube sub-assembly connector into the fuel delivery pipe until a "click" sound can be heard.

ПРИМЕЧАНИЕ:

1. Check that there are no scratches or foreign matter around the disconnected parts of the fuel tube connector and pipe before performing this work.

2. After connecting the fuel tube, check that the fuel tube connector and pipe are securely connected by pulling them.


Install a new No. 2 fuel pipe clamp (Type B).

Install a new No. 2 fuel pump clamp (Type A).

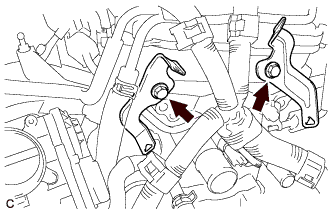

Install the 2 wire harness brackets with the 2 bolts.

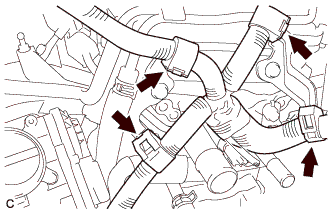

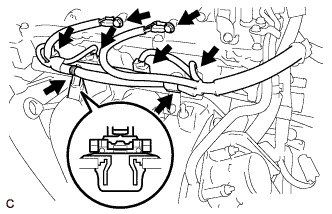

Connect the 4 wire harness clamps.

Connect the 4 fuel injector assembly connectors.

Connect the 2 wire harness clamps.

Connect the ground wire with the 2 bolts.

Connect the No. 2 ventilation hose.

Введите в зацепление 4 фиксатора, чтобы установить декоративную крышку V-образного двигателя.

ПРИМЕЧАНИЕ:

1. Проверьте надежность зацепления фиксаторов.

2. Во время зацепления фиксаторов на крышке не прикладывайте чрезмерных усилий и не допускайте ударов. Это может привести к поломке крышки.
