СИСТЕМА SFI - Выходная цепь VC


DESCRIPTION

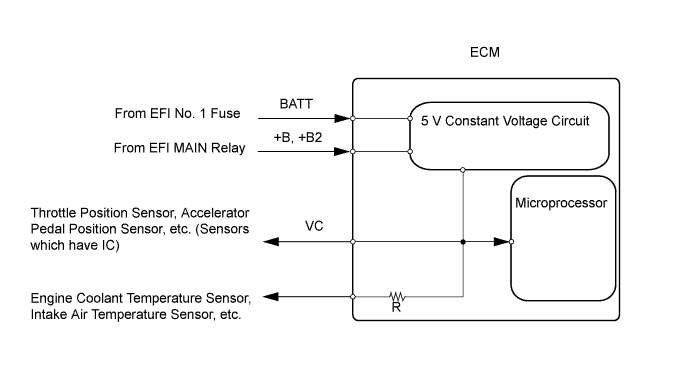

The ECM constantly generates 5 V power from the battery voltages supplied to the +B (BATT) terminal to operate the microprocessor. The ECM also provides this power to the sensors through the VC output circuit.

COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Выходная Цепь Vc

When the VC circuit is short-circuited, the microprocessor in the ECM and sensors that are supplied with power through the VC circuit are inactivated because the power is not supplied from the VC circuit. Under this condition, the system does not start up and the MIL does not illuminate even if the system malfunctions.
УКАЗАНИЕ:
Under normal conditions, the MIL is illuminated for several seconds when the ignition switch is first turned on (IG). The MIL goes off when the engine is started.

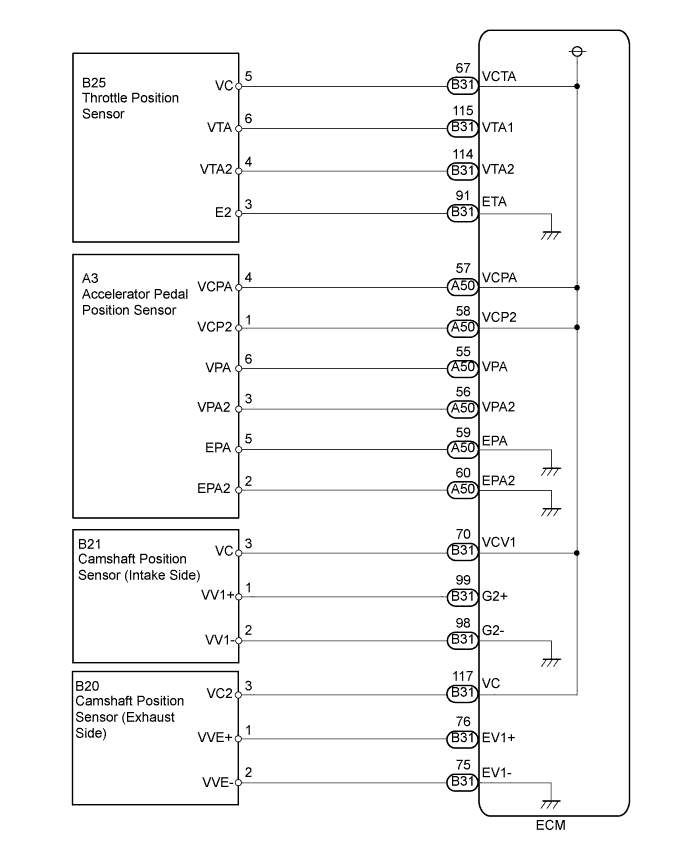

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Выходная Цепь Vc


INSPECTION PROCEDURE

1.CHECK MIL CONDITION

  1. Check that the Malfunction Indicator Lamp (MIL) lights up when turning the ignition switch on (IG).

    OK:
    MIL lights up.


NG
Перейдите к шагу 2
OK

SYSTEM OK

2.CHECK CONNECTION BETWEEN INTELLIGENT TESTER AND ECM

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG).

  1. Turn the tester on.

  1. Check for communication between the tester and ECM.

    Result:

    Result
    		Proceed to
    Communication is possible
    		A
    Communication is not possible
    		B


A
GO TO MIL CIRCUIT (Нажмите здесь)
B


3.CHECK MIL (THROTTLE POSITION SENSOR)

  1. Disconnect the throttle body assembly connector.

  1. Turn the ignition switch on (IG).

  1. Check the MIL.

    Result:

    Result
    		Proceed to
    MIL illuminates
    		A
    MIL does not illuminate
    		B

  1. Reconnect the throttle body assembly connector.



A
REPLACE THROTTLE BODY ASSEMBLY (Нажмите здесь)
B


4.CHECK MIL (ACCELERATOR PEDAL POSITION SENSOR)

  1. Disconnect the accelerator pedal position sensor connector.

  1. Turn the ignition switch on (IG).

  1. Check the MIL.

    Result:

    Result
    		Proceed to
    MIL illuminates
    		A
    MIL does not illuminate
    		B

  1. Reconnect the accelerator pedal position sensor connector.



A
REPLACE ACCELERATOR PEDAL ASSEMBLY (ACCELERATOR PEDAL POSITION SENSOR) (Нажмите здесь)
B


5.CHECK MIL (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT))

  1. Disconnect the camshaft position sensor (for intake camshaft) connector.

  1. Turn the ignition switch on (IG).

  1. Check the MIL.

    Result:

    Result
    		Proceed to
    MIL illuminates
    		A
    MIL does not illuminate
    		B

  1. Reconnect the camshaft position sensor (for intake camshaft) connector.



A
REPLACE CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT) (Нажмите здесь)
B


6.CHECK MIL (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT))

  1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.

  1. Turn the ignition switch on (IG).

  1. Check the MIL.

    Result:

    Result
    		Proceed to
    MIL illuminates
    		A
    MIL does not illuminate
    		B

  1. Reconnect the camshaft position sensor (for exhaust camshaft) connector.



A
REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) (Нажмите здесь)
B


7.CHECK HARNESS AND CONNECTOR

  1. Disconnect the throttle body assembly connector.

  1. Disconnect the accelerator pedal position sensor connector.

  1. Disconnect the camshaft position sensor (for intake camshaft) connector.

  1. Disconnect the camshaft position sensor (for exhaust camshaft) connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Выходная Цепь Vc

  1. Disconnect the ECM connectors.

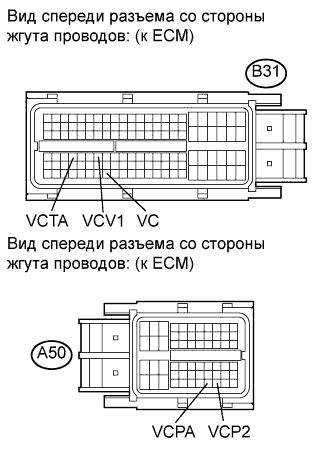

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B31-67 (VCTA) - Body ground
    		Always
    		10 kΩ or higher
    A50-57 (VCPA) - Body ground
    		Always
    		10 kΩ or higher
    A50-58 (VCP2) - Body ground
    		Always
    		10 kΩ or higher
    B31-70 (VCV1) - Body ground
    		Always
    		10 kΩ or higher
    B31-117 (VC) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the throttle body assembly connector.

  1. Reconnect the accelerator pedal position sensor connector.

  1. Reconnect the camshaft position sensor (for intake camshaft) connector.

  1. Reconnect the camshaft position sensor (for exhaust camshaft) connector.

  1. Reconnect the ECM connectors.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE ECM (Нажмите здесь)
