Механическая Трансмиссия C66. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Механическая Трансмиссия В Блоке С Главной Передачей В Сборе -- Снятие |
| 1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (for 2ZR-FE) |
- УКАЗАНИЕ:
- See the steps from "DISCHARGE FUEL SYSTEM PRESSURE" through "REMOVE ENGINE ASSEMBLY WITH TRANSAXLE" (See page Нажмите здесь).
| 2. REMOVE REAR ENGINE MOUNTING INSULATOR (for 2ZR-FE) |
Remove the bolt and nut, and separate the rear engine mounting insulator.
 |
| 3. INSTALL ENGINE HANGER (for 2ZR-FE) |
Remove the air fuel ratio sensor bracket.
Install the 2 engine hangers with the 2 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
Part Name Part No. No. 1 engine hanger 12281-37020 No. 2 engine hanger 12282-37010 Bolt 91552-81050
 |
| 4. REMOVE FLYWHEEL HOUSING SIDE COVER |
| 5. REMOVE STARTER ASSEMBLY (for 2ZR-FE) |
Separate the 2 harness clamps.
 |
Remove the bolt and wire harness bracket.
Remove the terminal cap.
 |
Remove the nut and terminal 30.
Disconnect the connector.
Remove the 2 bolts and starter assembly.
| 6. REMOVE MANUAL TRANSAXLE ASSEMBLY |
Remove the 7 bolts and the manual transaxle.
 |
| 7. REMOVE WIRE HARNESS CLAMP BRACKET |

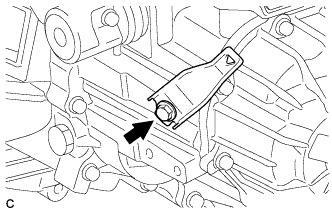

Remove the bolt and the wire harness clamp bracket.
 |
| 8. REMOVE CONTROL CABLE BRACKET |

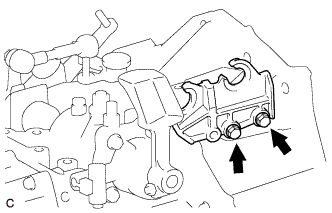

Remove the 2 bolts and the control cable bracket.
 |
| 9. REMOVE ENGINE MOUNTING BRACKET LH |

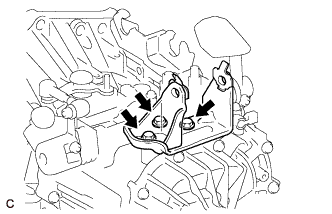

Remove the 3 bolts and the engine mounting bracket LH.
 |
| 10. REMOVE FRONT ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the front engine mounting bracket.
 |
| 11. REMOVE REAR ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the rear engine mounting bracket.
 |
