Механическая Трансмиссия В Блоке С Главной Передачей В Сборе -- Снятие |
| 1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (for 1ND-TV) |
- УКАЗАНИЕ:
- See the steps from "REMOVE FRONT WHEELS" through "REMOVE ENGINE ASSEMBLY WITH TRANSAXLE" (See page Нажмите здесь).
| 2. REMOVE ENGINE MOUNTING DAMPER (for 1ND-TV) |
Remove the bolt and No. 3 engine cover bracket.
 |
Install the 2 engine hangers with 2 new bolts.
- Момент затяжки:
- 40 Н*м{408 кгс*см, 30 фунт-сила-футов}
Part Name Part No. Engine hanger 12281-21010 Bolt 91672-81025 - ПРИМЕЧАНИЕ:
- Be sure to use new bolts to install the engine hanger.
 |
Using a chain block and engine sling device, hold engine with transaxle.
Remove the bolt, nut and front engine mounting insulator.
 |
| 3. REMOVE REAR ENGINE MOUNTING INSULATOR (for 1ND-TV) |
Remove the bolt and rear engine mounting insulator.
 |
| 4. REMOVE ENGINE WIRE (for 1ND-TV) |
Disconnect all the wire harnesses and connectors. Make sure that no wire harnesses are connected to the engine.
| 5. REMOVE STARTER ASSEMBLY |
- УКАЗАНИЕ:
- See page Нажмите здесь for 1.4 kW, 2.0 kW Type
- See page Нажмите здесь for 1.1 kW Type
| 6. REMOVE NO. 1 AIR TUBE |
Loosen the 2 hose clamps, and remove the 3 bolts and the No. 1 air tube.
 |
| 7. REMOVE MANUAL TRANSAXLE ASSEMBLY |
Remove the 7 bolts and the manual transaxle.
 |

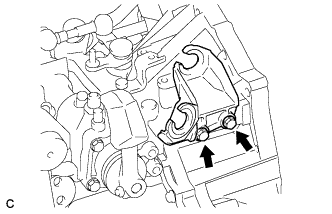

| 8. REMOVE CONTROL CABLE BRACKET |
Remove the 2 bolts and the control cable bracket.
 |
| 9. REMOVE ENGINE MOUNTING BRACKET LH |
Remove the 3 bolts and the engine mounting bracket LH.
 |
| 10. REMOVE FRONT ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the front engine mounting bracket.
 |
| 11. REMOVE REAR ENGINE MOUNTING BRACKET |
Remove the 3 bolts and the rear engine mounting bracket.
 |
