Задний Сальник Коленчатого Вала -- Снятие |
| 1. REMOVE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle) |
Remove the manual transaxle for C53 (See page Нажмите здесь).
| 2. REMOVE MANUAL TRANSAXLE ASSEMBLY (for Multi-Mode Manual Transaxle) |
Remove the manual transaxle for C53A (See page Нажмите здесь).

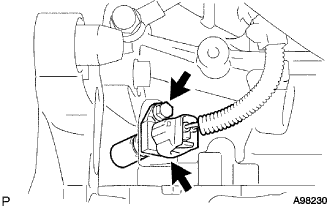

| 3. REMOVE CRANK POSITION SENSOR |
Remove the bolt and crankshaft position sensor.
 |
| 4. REMOVE CLUTCH COVER ASSEMBLY (for Manual Transaxle) |
Remove the clutch cover assembly for C53 (See page Нажмите здесь).
| 5. REMOVE CLUTCH COVER ASSEMBLY (for Multi-Mode Manual Transaxle) |
Remove the clutch cover assembly for C53A (See page Нажмите здесь).
| 6. REMOVE CLUTCH DISC ASSEMBLY |
| 7. REMOVE FLYWHEEL SUB-ASSEMBLY |
 |

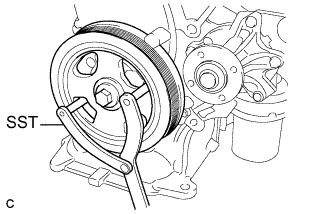

Hold the crankshaft with SST.
- SST
- 09960-10010(09962-01000,09963-01000)
Remove the 6 bolts and flywheel sub-assembly.
| 8. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
Remove the No. 1 crankshaft position sensor plate.

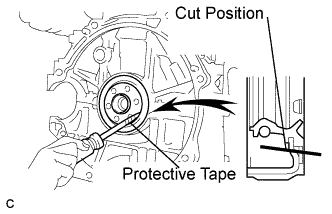

| 9. REMOVE ENGINE REAR OIL SEAL |
Using a knife, cut off the oil seal lip.
Using a screwdriver with its tip wrapped in protective tape, remove the engine rear oil seal.
- ПРИМЕЧАНИЕ:
- After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
 |
