Генератор Повторная Сборка. Corolla Auris

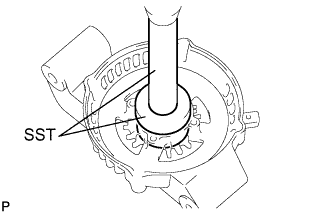

Using SST and a press, press in a new bearing.

SST

09950-60010(09951-00470)
09950-70010(09951-07100)

Install the retainer plate with the 4 screws.

Момент затяжки:

2.3 Н*м{23 кгс*см, 20 фунт-сила-дюймов}

Install the rotor to the drive end frame.

Place the generator washer on the rotor.

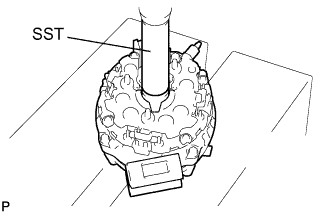

Using SST and a press, slowly press the coil assembly onto the generator rotor bearing.

SST

09285-76010

Install the coil assembly with the 4 bolts.

Момент затяжки:

5.8 Н*м{59 кгс*см, 51 фунт-сила-дюймов}

While pushing the 2 brushes into the generator brush holder assembly, insert a φ1.0 mm (0.039 in.) pin into the brush holder hole.

Install the generator brush holder assembly with the 2 screws.

Момент затяжки:

1.8 Н*м{18 кгс*см, 16 фунт-сила-дюймов}

Pull out the pin from the generator brush holder assembly.

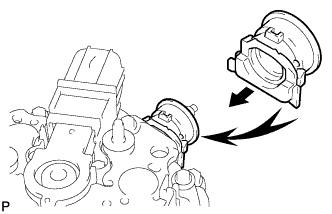

Install the terminal insulator.

ПРИМЕЧАНИЕ:

Pay attention to the installation direction of the terminal insulator as shown in the illustration.

Install the end cover with the 3 nuts.

Момент затяжки:

4.6 Н*м{47 кгс*см, 41 фунт-сила-дюймов}

Temporarily install the pulley onto the rotor shaft.

Set SST (A) and (B).

SST

09820-63020

Clamp SST (A) in a vise.

Place the rotor shaft end into SST (A).

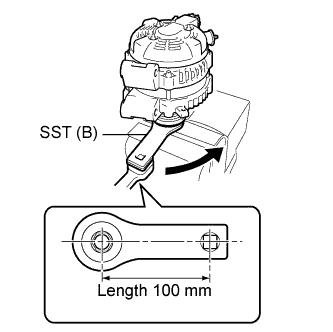

Fit SST (B) to the clutch pulley.

Tighten the pulley by turning SST (B) in the direction shown in the illustration.

Момент затяжки:

without SST:

111 Н*м{1127 кгс*см, 82 фунт-сила-футов}

with SST:

84 Н*м{857 кгс*см, 62 фунт-сила-футов}

ПРИМЕЧАНИЕ:

1. Use a torque wrench with a fulcrum length of 318 mm (12.52 in.).

2. This torque value is effective when SST is parallel to the torque wrench.


Remove the generator assembly from SST.

Check that the clutch pulley rotates smoothly.

Install a new clutch pulley cap to the clutch pulley.
