Генератор -- Разборка |
| 1. REMOVE GENERATOR CLUTCH PULLEY |
Remove the generator pulley cap.

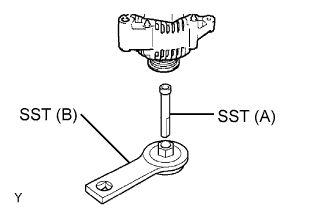

Set SST (A) and (B).
- SST
- 09820-63020
 |

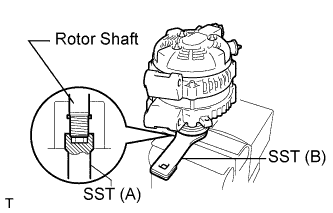

Clamp SST (A) in a vise.
 |
Place the rotor shaft end into SST (A).

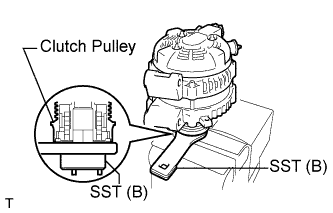

Fit SST (B) to the clutch pulley.
 |

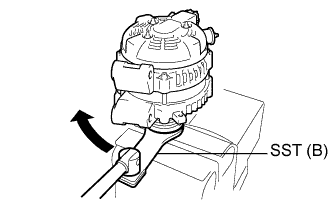

Loosen the pulley by turning SST (B) in the direction shown in the illustration.
 |
Remove the generator assembly from SST.
Remove the clutch pulley from the rotor shaft.
| 2. REMOVE GENERATOR REAR END COVER |

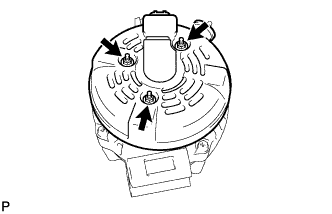

Remove the 3 nuts and end cover.
 |
Remove the terminal insulator.
| 3. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY |

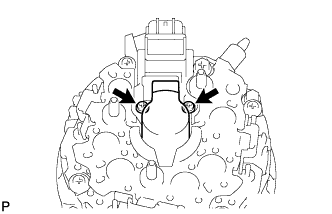

Remove the 2 screws and brush holder.
 |
| 4. REMOVE GENERATOR COIL ASSEMBLY |

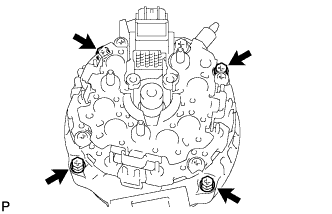

Remove the 4 bolts.
 |

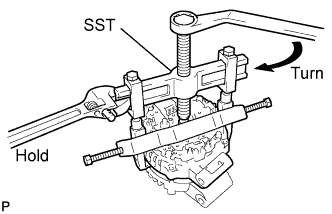

Using SST, remove the coil.
- SST
- 09950-40011(09951-04020,09952-04010,09953-04020,09954-04010,09955-04071,09957-04010,09958-04011)
 |
Remove the generator washer.
| 5. REMOVE GENERATOR ROTOR ASSEMBLY |
| 6. REMOVE GENERATOR DRIVE END FRAME BEARING |
Remove the 4 screws and retainer.
 |

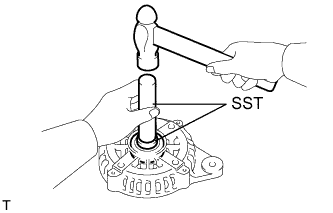

Using SST and a hammer, tap out the bearing.
- SST
- 09950-60010(09951-00470)
09950-70010(09951-07100)
 |
