Вал Рычага Выбора И Переключения Передач Разборка. Corolla ZZE150

Remove the shifting bellcrank dust cover from the selecting bellcrank assembly.

Remove the No. 1 selecting bellcrank dust cover from the selecting bellcrank.

Remove the nut, spring washer and No. 2 selecting bellcrank plate washer from the selecting bellcrank.

Remove the selecting bellcrank from the selecting bellcrank support.

Remove the No. 2 selecting bellcrank dust cover from the selecting bellcrank support.

Remove the 2 selecting bellcrank bushings from the selecting bellcrank support.

Remove the nut, spring washer and control shaft assembly from the selecting bellcrank support.

Remove the nut and spring washer.

Using a brass bar and a hammer, remove the lock pin.

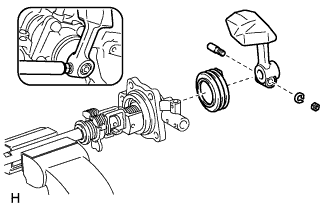

Remove the shift lever damper from the transmission case.

Remove the dust boot from the transmission case.

Remove the control shaft cover assembly from the shift and select lever shaft.

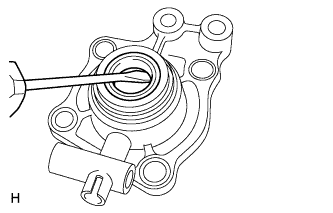

Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover assembly.

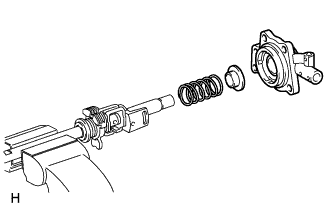

Using a screwdriver, remove the E-ring, No. 2 select spring seat and compression spring from the shift and select lever shaft.

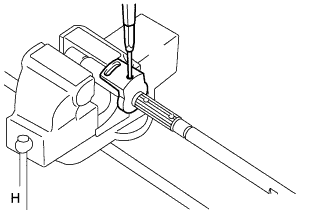

Using a pin punch (φ5 mm) and a hammer, remove the slotted spring pin and inner No. 2 shift lever from the shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the inner No. 2 shift lever.

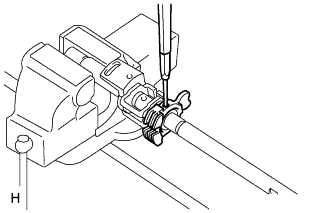

Using a pin punch (φ5 mm) and a hammer, remove the slotted spring pin, inner No. 1 shift lever and shift inter lock plate from the shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the inner No. 1 shift lever.

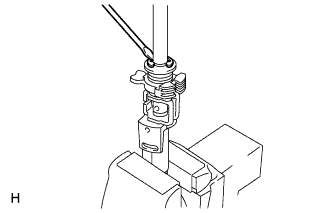

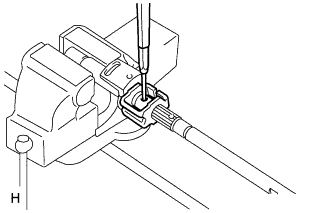

Using a pin punch (φ5 mm) and a hammer, remove the slotted spring pin, inner select lever, from the shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the inner select lever.
