Вал Рычага Выбора И Переключения Передач Разборка. Corolla ZZE150

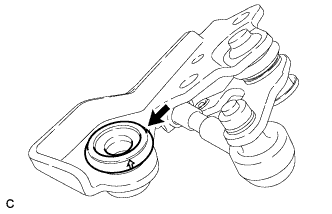

Remove the floor shift control bellcrank dust cover from the selecting bellcrank assembly.

Remove the No. 1 selecting bellcrank dust cover from the selecting bellcrank.

Remove the nut, spring washer and selecting bellcrank dust cover plate washer from the selecting bellcrank.

Remove the selecting bellcrank from the selecting bellcrank support.

Remove the No. 2 selecting bellcrank dust cover from the selecting bellcrank support.

Remove the 2 selecting bellcrank bushings from the selecting bellcrank support.

Remove the nut, spring washer and floor shift control shaft assembly from the selecting bellcrank support.

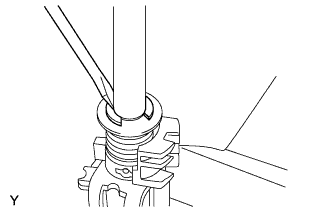

Using a screwdriver, remove the E-ring, No. 2 select spring seat and compression spring from the shift and select lever shaft.

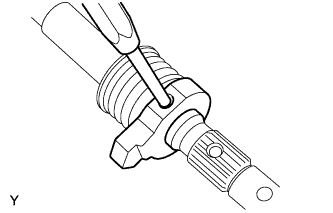

Using a pin punch (φ5 mm) and a hammer, remove the shift inner lever slotted spring pin and inner No. 2 shift lever from the shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the inner No. 2 shift lever.

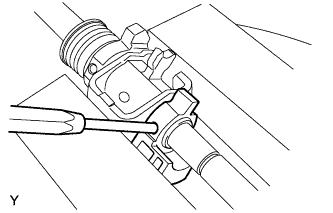

Using a pin punch (φ5 mm) and a hammer, remove the shift inner lever slotted spring pin, inner No. 1 shift lever and shift inter lock plate from the shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the inner No. 1 shift lever.

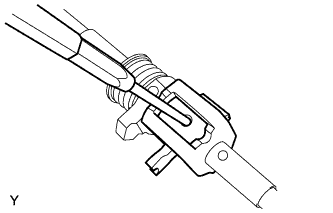

Using a pin punch (φ5 mm) and a hammer, remove the select inner lever slotted spring pin, select inner lever, No. 1 select return compression spring and No. 1 select spring seat from shift and select lever shaft.

УКАЗАНИЕ:

Check the orientation of the select inner lever.

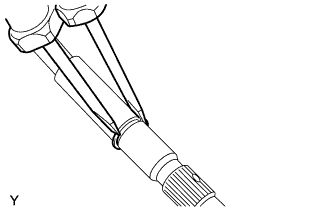

Using 2 screwdrivers and a hammer, remove the No. 1 select spring seat shaft snap ring.
