Корпус Дифференциала Повторная Сборка. Corolla ZZE150

Coat the sliding and rotating surfaces of the front differential side gear with gear oil.

Install the 2 front No. 1 differential side gear thrust washers onto the 2 front differential side gears.

Install the 2 front differential side gears, 2 front differential pinions and 2 front differential pinion thrust washers onto the front differential case.

УКАЗАНИЕ:

Revolving the front differential side gear, install the 2 front differential pinions and 2 front differential pinion thrust washers.

Coat the front No. 1 differential pinion shaft with MP grease.

Install the front No. 1 differential pinion shaft onto the front differential case so that the hole for the front differential pinion shaft straight pin is aligned with the hole in the front differential case.

Fix the front differential pinion to the front differential case side. Using a dial indicator, measure the front differential side gear backlash.

Standard backlash:

0.05 to 0.20 mm (0.0020 to 0.0079 in.)

Thrust washer thickness:

Parts No.	Thickness mm (in.)
41361-22140	0.95 (0.0374)
41361-22020	1.00 (0.0394)
41361-22150	1.05 (0.0413)
41361-22030	1.10 (0.0433)
41361-22160	1.15 (0.0452)
41361-22040	1.20 (0.0472)

УКАЗАНИЕ:

1. Because the thrust washer does not have any marks for distinction, measure the thickness with a micrometer to select a proper thrust washer.

2. Select washers of the same thickness for both the right and left.


Using a pin punch (φ3 mm) and a hammer, install the front differential pinion shaft straight pin onto the front differential case.

Using a chisel and a hammer, stake the front differential case hole.

Clean the contact surfaces of the front differential case and ring gear.

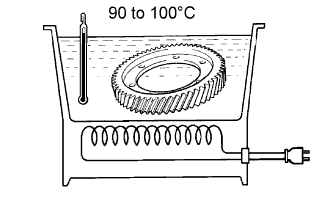

Using a heater, heat the front differential ring gear to 90 to 100°C (194.0 to 212.0°F).

After the moisture on the ring gear has completely evaporated, quickly install the ring gear onto the differential case.

Aligning the matchmarks, quickly install the front differential ring gear onto the front differential case.

Install the 8 bolts.

Момент затяжки:

77 Н*м{790 кгс*см, 57 фунт-сила-футов}

Install the speedometer drive gear onto the front differential case.
