Головка Блока Цилиндров -- Разборка



1. REMOVE INTAKE VALVE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Часть Двигателя 2Ad-Fhv.Двигатель.Головка Блока Цилиндров Разборка

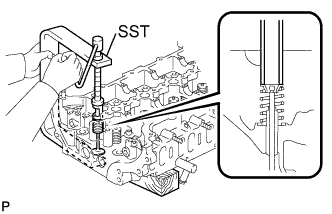

  1. Using SST and wooden blocks, compress the compression springs and remove the 16 valve spring retainer locks.

    SST
    09202-70020

  1. Remove the 8 retainers, 8 compression springs and 8 intake valves.

    УКАЗАНИЕ:
    Arrange the removed parts in the correct order.


2. REMOVE EXHAUST VALVE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Часть Двигателя 2Ad-Fhv.Двигатель.Головка Блока Цилиндров Разборка

  1. Using SST and wooden blocks, compress the compression springs and remove the 16 valve spring retainer locks.

    SST
    09202-70020

  1. Remove the 8 retainers, 8 compression springs and 8 exhaust valves.

    УКАЗАНИЕ:
    Arrange the removed parts in the correct order.


3. REMOVE VALVE STEM OIL SEAL


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

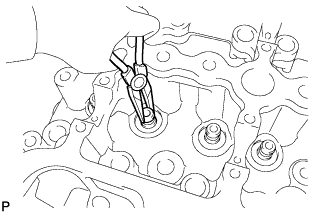

  1. Using needle-nose pliers, remove the 16 valve stem oil seals.



4. REMOVE VALVE SPRING SEAT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

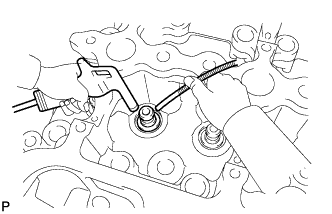

  1. Using compressed air and a magnetic pick-up tool, remove the 16 valve spring seats by blowing air onto them.
