Турбонагнетатель Снятие. Corolla Auris

Remove the engine from the vehicle (See page Нажмите здесь).

Remove the 5 bolts and No. 1 manifold converter insulator.

Remove the 3 bolts and No. 2 manifold converter insulator.

Disconnect the 2 exhaust gas temperature sensor connectors.

Remove the bolt, nut and No. 1 manifold stay.

Remove the 3 bolts and No. 2 manifold stay.

Remove the 2 bolts, nut and No. 2 exhaust manifold stay.

Remove the 3 nuts, manifold converter sub-assembly and turbine outlet elbow gasket.

Remove the 2 bolts and insulator.

Using needle-nose pliers, grip the claws of the clip and slide the clip to disconnect the No. 1 turbo water hose.

УКАЗАНИЕ:

Place a container under the connection before disconnecting the No. 1 turbo water hose because water in the hose may spill out.

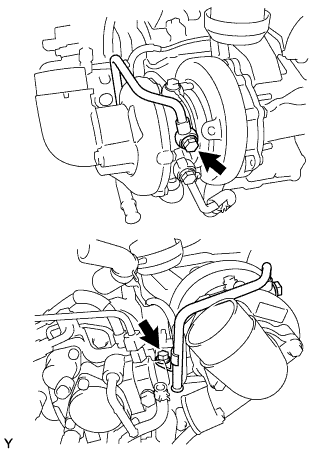

Remove the bolt and gasket, then remove the pipe.

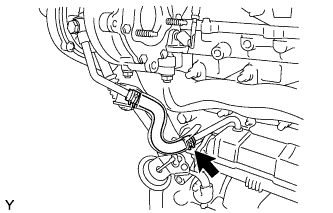

Using needle-nose pliers, grip the claws of the clip and slide the clip to disconnect the No. 3 water by-pass hose.

УКАЗАНИЕ:

Place a container under the connection before disconnecting the No. 3 water by-pass hose because water in the hose may spill out.

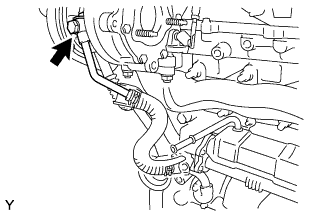

Remove the 2 bolts and gasket, and then remove the pipe.

Remove the 4 bolts, 2 gaskets and outlet pipe.

УКАЗАНИЕ:

Place a container under the connection before disconnecting the outlet pipe because oil in the pipe may spill out.

Remove the 2 bolts, 2 gaskets and oil pipe.

Disconnect the 2 vacuum hoses to remove the turbo oil pipe.

Remove the 2 nuts, 2 spacers and turbocharger stay.

Remove the 3 nuts, gasket and turbocharger.
