Вал Рычага Выбора И Переключения Передач -- Разборка |

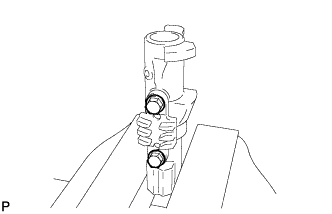

| 1. REMOVE SELECTING BELL CRANK ASSEMBLY |
Remove the 2 bolts and selecting bell crank assembly from the manual transmission case.
 |

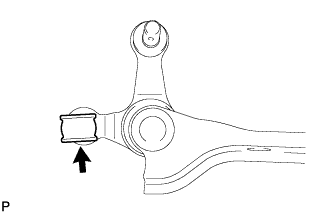

| 2. REMOVE CONTROL SHIFT LEVER BUSHING |
Remove the control shift lever bushing from the selecting bell crank.
 |

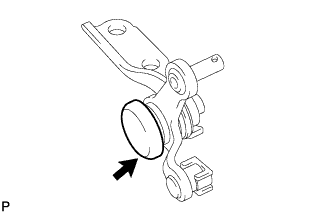

| 3. REMOVE NO. 1 SELECTING BELL CRANK DUST COVER |
Remove the No. 1 selecting bell crank dust cover from the selecting bell crank.
 |

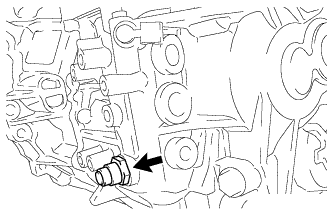

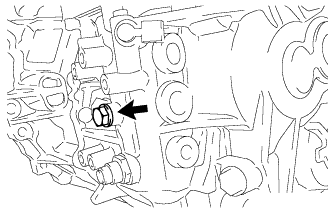

| 4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY |
Using SST, remove the back-up light switch assembly and gasket.
- SST
- 09816-30010
 |
| 5. REMOVE NO. 1 LOCK BALL ASSEMBLY |
Remove the No. 1 lock ball assembly from the manual transmission case.
 |
| 6. REMOVE NO. 2 LOCK BALL ASSEMBLY |
Remove the No. 2 lock ball assembly from the manual transmission case.
 |
| 7. REMOVE SHIFT GATE PIN |
Remove the shift gate pin from the manual transmission case.
 |
| 8. REMOVE SHIFT AND SELECT LEVER ASSEMBLY |
Remove the 4 bolts and control shaft cover from the manual transmission case.
 |

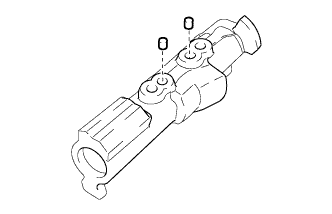

| 9. REMOVE NO. 1 SHIFT LEVER INNER |

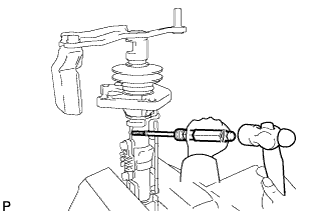

Using a pin punch and hammer, remove the slotted spring pin from the No. 1 shift lever inner.
 |
Remove the No. 1 shift lever inner and the shift interlock plate from the shift and select lever shaft.

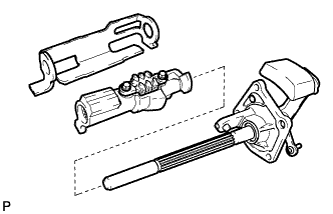

| 10. REMOVE SHIFT AND SELECT LEVER SHAFT |
Remove the shift control cover and the shift and select lever boot from the shift and select lever shaft.
 |
| 11. REMOVE SHIFT GATE PLATE |
Remove the 2 bolts and shift gate plate from the No. 1 shift lever inner.
 |
| 12. REMOVE PIN |
Remove the 2 pins.
 |

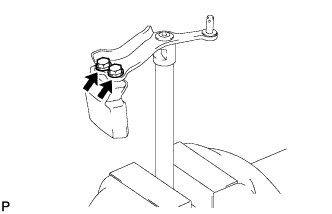

| 13. REMOVE SHIFT LEVER DAMPER |
Remove the 2 bolts and shift lever damper from the shift lever shaft.
 |

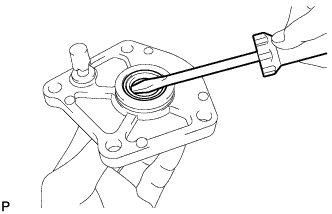

| 14. REMOVE CONTROL SHAFT COVER OIL SEAL |
Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.
 |
| 15. REMOVE SHIFT FORK SHAFT BEARING |
Using SST and press, remove the shift fork shaft bearing.
- SST
- 09285-76010
 |
