Электромагнитный Клапан Переключения Передач Проверка. Corolla ZZE150

Трансмиссия. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Автоматическая Трансмиссия U341E. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. INSPECT SHIFT SOLENOID VALVE S1

  2. INSPECT SHIFT SOLENOID VALVE S2

  3. INSPECT SHIFT SOLENOID VALVE ST

  4. INSPECT SHIFT SOLENOID VALVE SLT

  5. INSPECT SHIFT SOLENOID VALVE SL

Электромагнитный Клапан Переключения Передач -- Проверка

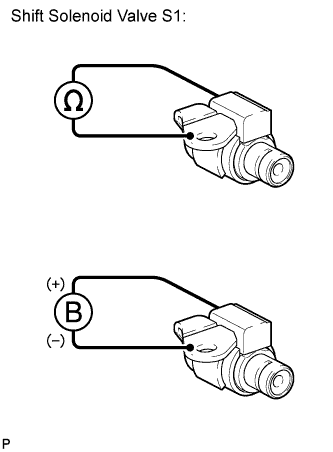

1. INSPECT SHIFT SOLENOID VALVE S1


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Электромагнитный Клапан Переключения Передач Проверка

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    Solenoid Connector (S1) - Solenoid Body (S1)
    		20°C (68°F)
    		11 to 15 Ω
    If the value is not as specified, replace the shift solenoid valve S1.

  1. Connect the positive (+) battery lead to the terminal of the solenoid connector, and the negative (-) battery lead to the solenoid body, and check the operation of the valve.

    ПРИМЕЧАНИЕ:
    When using the battery during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
    OK:
    The solenoid makes an operating sound.
    If the operation cannot be done as specified, replace the shift solenoid valve S1.

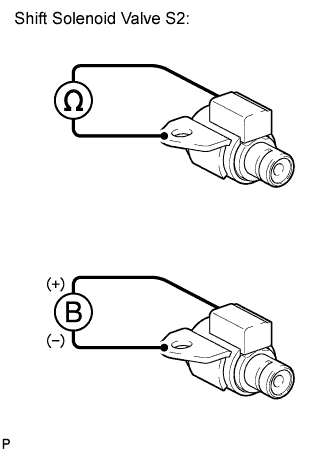

2. INSPECT SHIFT SOLENOID VALVE S2


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Электромагнитный Клапан Переключения Передач Проверка

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    Solenoid Connector (S2) - Solenoid Body (S2)
    		20°C (68°F)
    		11 to 15 Ω
    If the value is not as specified, replace the shift solenoid valve S2.

  1. Connect the positive (+) battery lead to the terminal of the solenoid connector, and the negative (-) battery lead to the solenoid body, and check the operation of the valve.

    ПРИМЕЧАНИЕ:
    When using the battery during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
    OK:
    The solenoid makes an operating sound.
    If the operation cannot be done as specified, replace the shift solenoid valve S2.

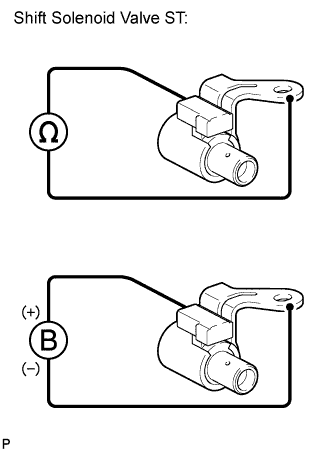

3. INSPECT SHIFT SOLENOID VALVE ST


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Электромагнитный Клапан Переключения Передач Проверка

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    Solenoid Connector (ST) - Solenoid Body (ST)
    		20°C (68°F)
    		11 to 15 Ω
    If the value is not as specified, replace the shift solenoid valve ST.

  1. Connect the positive (+) battery lead to the terminal of the solenoid connector, and the negative (-) battery lead to the solenoid body, and check the operation of the valve.

    ПРИМЕЧАНИЕ:
    When using the battery during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
    OK:
    The solenoid makes an operating sound.
    If the operation cannot be done as specified, replace the shift solenoid valve ST.

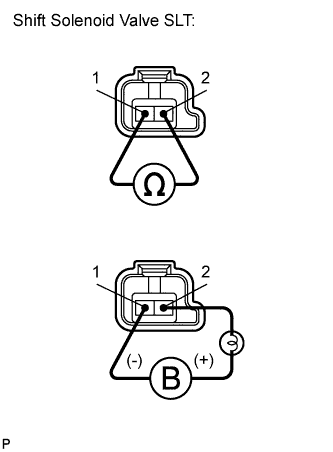

4. INSPECT SHIFT SOLENOID VALVE SLT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Электромагнитный Клапан Переключения Передач Проверка

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Specified Condition
    		Specified Condition
    1 - 2
    		20°C (68°F)
    		5.0 to 5.6 Ω
    If the value is not as specified, replace the shift solenoid valve SLT.

  1. Connect the positive (+) battery lead with a 21 W bulb to terminal 2 and the negative (-) battery lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.

    ПРИМЕЧАНИЕ:
    When using the battery during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
    OK:
    The solenoid makes an operating sound.
    If the operation cannot be done as specified, replace the shift solenoid valve SLT.

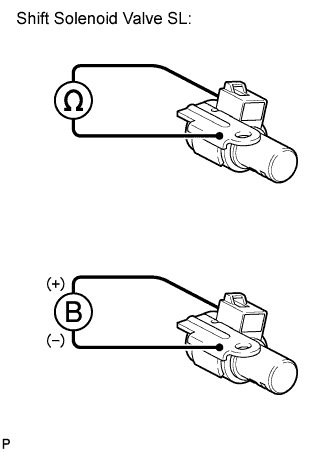

5. INSPECT SHIFT SOLENOID VALVE SL


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии.Электромагнитный Клапан Переключения Передач Проверка

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Specified Condition
    		Specified Condition
    Solenoid Connector (SL) - Solenoid Body (SL)
    		20°C (68°F)
    		11 to 15 Ω
    If the value is not as specified, replace the shift solenoid valve SL.

  1. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

    ПРИМЕЧАНИЕ:
    When using the battery during the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
    OK:
    The solenoid makes an operating sound.
    If the operation cannot be done as specified, replace the shift solenoid valve SL.
