Первичный Вал Повторная Сборка. Corolla ZZE150

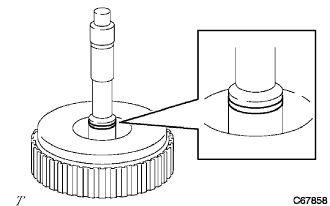

Coat a new input shaft oil seal ring with ATF, and install it to the input shaft.

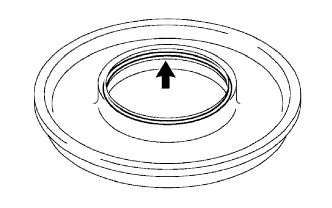

Coat a new clutch piston O-ring with ATF, and install it to the forward clutch piston.

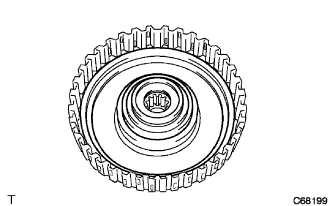

Install the forward clutch piston to the input shaft.

ПРИМЕЧАНИЕ:

Do not damage the O-ring.

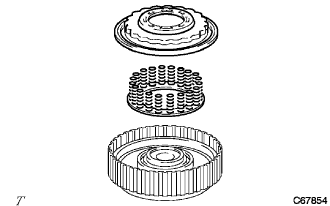

Install the return spring and clutch balancer to the input shaft.

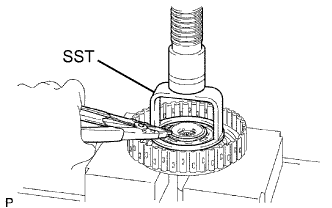

Using SST, a press and snap ring pliers, install the snap ring to the input shaft.

SST

09320-89010

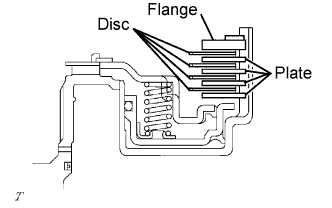

Install the 4 plates, 4 discs and flange.

Using a screwdriver, install the snap ring to the input shaft.

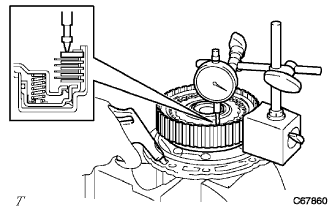

Using a dial indicator, measure the pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm², 57 psi).

Pack clearance:

1.406 to 1.806 mm (0.05535 to 0.07110 in.)

ПРИМЕЧАНИЕ:

If the clearance is not within the specified range, install a new brake flange.

УКАЗАНИЕ:

There are 4 different flange thicknesses.

Flange thickness:

No.	Thickness mm (in.)	No.	Thickness mm (in.)
-	3.0 (0.118)	2	3.4 (0.134)
1	3.2 (0.126)	3	3.6 (0.142)
