Первичный Вал Разборка. Corolla ZZE150

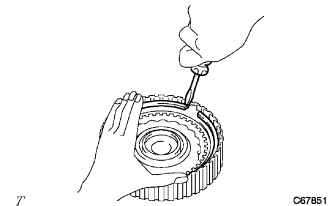

Using a screwdriver, remove the snap ring.

Remove the flange, 4 discs and 4 plates from the input shaft.

Using SST on the clutch balancer, compress the return spring with a press.

SST

09320-89010

ПРИМЕЧАНИЕ:

Do not compress the return spring excessively.

Using a snap ring expander, remove the snap ring.

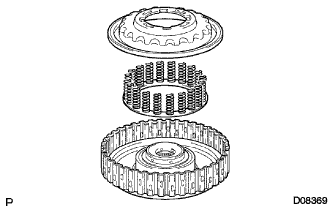

Remove the clutch balancer and piston return spring.

Place the input shaft onto the oil pump.

Holding the forward clutch piston by hand, apply compressed air (392 kPa, 4.0 kgf/cm², 57 psi) to the oil pump to remove the forward clutch piston.

УКАЗАНИЕ:

When the piston can not be removed due to being slanted, either apply compressed air again with the raised side pushed level or remove the piston using needle-nose pliers with their tips wrapped in protective tape.

Using a screwdriver, remove the clutch piston O-ring from the forward clutch piston.

Using a screwdriver, remove the input shaft oil seal ring from the input shaft.
