Блок Автоматической Трансмиссии -- Проверка



1. INSPECT 2ND COAST AND OVERDRIVE BRAKE DISC


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

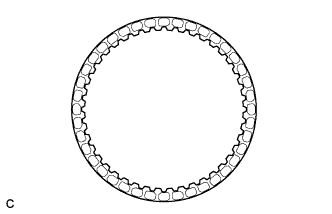

  1. Check whether the sliding surfaces of the discs, plates and flanges are worn or burnt.
    If necessary, replace them.

    ПРИМЕЧАНИЕ:
    1. If the lining of any disc is peeling off or discolored, or even if a part of the printed number is defaced, replace all the discs.
    2. Before assembling new discs, soak them in ATF for at least 15 minutes.


2. INSPECT 2ND BRAKE DISC


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

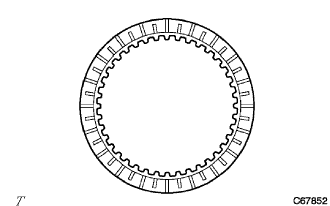

  1. Check whether the sliding surfaces of the discs, plates and flanges are worn or burnt.
    If necessary, replace them.

    ПРИМЕЧАНИЕ:
    1. If the lining of any disc is peeling off or discolored or even if a part of the printed mark is defaced, replace all the discs.
    2. Before assembling new discs, soak them in ATF for at least 15 minutes.


3. INSPECT 1ST AND REVERSE BRAKE DISC


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Check to see if the sliding surfaces of the discs, plates and flanges are worn or burnt.
    If necessary, replace them.

    ПРИМЕЧАНИЕ:
    1. If the lining of any disc is peeling off or discolored, or even if a part of the printed mark is defaced, replace all the discs.
    2. Before assembling new discs, soak in ATF for at least 15 minutes.


4. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

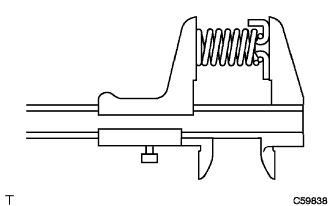

  1. Using vernier calipers, measure the free length of the spring together with the spring seat.

    Standard free length:
    13.96 mm (0.5496 in.)
