Датчик Положения Паркинга / Нейтрали Установка. Corolla ZZE150

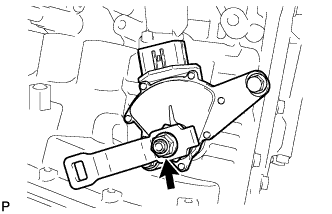

Install the park/neutral position switch assembly to the automatic transaxle.

Temporarily install the 2 bolts.

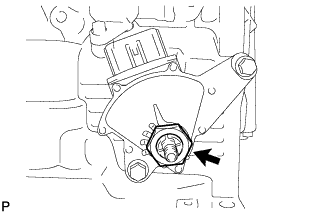

Replace the lock plate with a new one and tighten the manual valve shaft nut.

Момент затяжки:

6.9 Н*м{70 кгс*см, 61 фунт-сила-дюймов}

Temporarily install the control shaft lever.

Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.

Remove the control shaft lever.

Align the groove with the neutral basic line.

Hold the switch in this position and tighten the 2 bolts.

Момент затяжки:

5.4 Н*м{55 кгс*см, 48 фунт-сила-дюймов}

Using a screwdriver, stake the nut with the lock plate.

Install the control shaft lever with the nut and washer.

Момент затяжки:

13 Н*м{133 кгс*см, 10 фунт-сила-футов}

Connect the connector to the park/neutral position switch assembly.

Install the transmission control cable assembly to the control shaft lever with the nut.

Момент затяжки:

12 Н*м{122 кгс*см, 9 фунт-сила-футов}

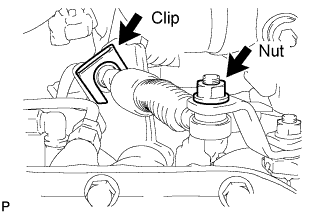

Install the transmission control cable assembly to the bracket with a new clip.

Apply the parking brake and move the shift lever to the N position.

Remove the rear console box assembly (See page Нажмите здесь).

Disconnect the end of the transmission control cable assembly from the shift lever assembly.

Using a screwdriver, pull out the stopper of the transmission control cable.

ПРИМЕЧАНИЕ:

Do not remove the stopper. If the stopper is removed, reinstall it to its original position.

Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.

ПРИМЕЧАНИЕ:

Do not over-rotate the nut as it will come off the interior spring and the transmission control cable will not be reusable.

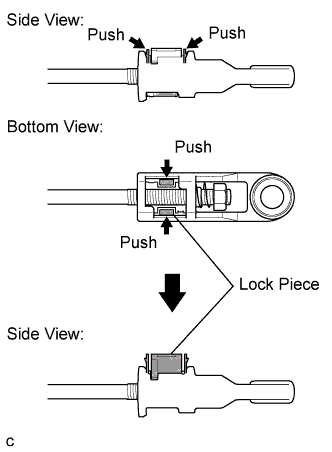

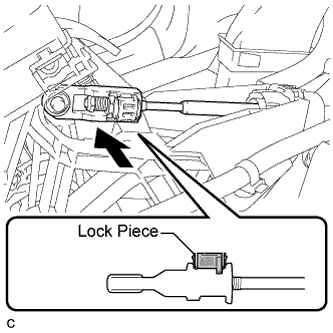

Push the two claws together at the top of the transmission control cable lock piece. While holding the two claws together, push the two lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.

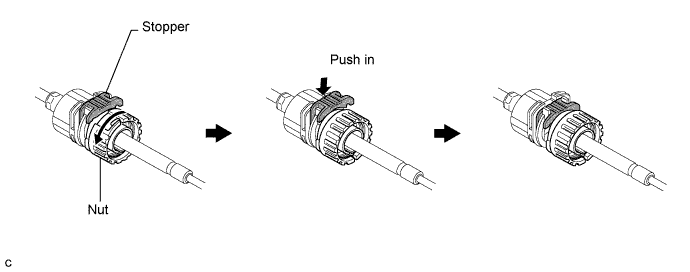

Turn the nut of the transmission control cable 180° counterclockwise. While holding the nut in place, push in the stopper until the stopper clicks twice.

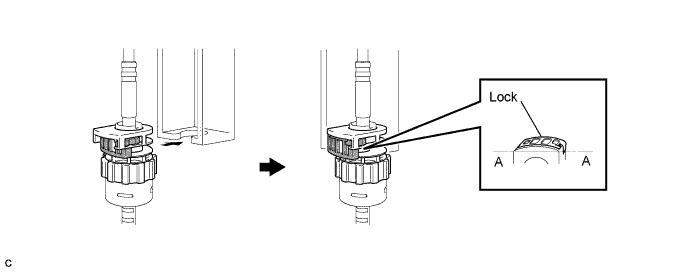

Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.

УКАЗАНИЕ:

If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

Install the cable end to the shift lever assembly.

ПРИМЕЧАНИЕ:

1. Check that the lock piece is pulled up.

2. Install the cable end all the way to the base of the pin.

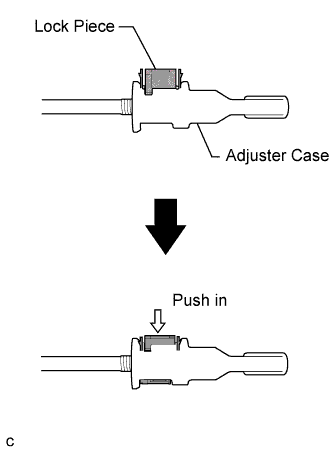

Push the lock piece into the adjuster case.

ПРИМЕЧАНИЕ:

Securely push in the lock piece until it locks.

After adjusting the shift lever position, check the operation and function of the shift lever. If there is a problem, adjust the position again.

Install the rear console box assembly (See page Нажмите здесь).

Apply the parking brake and move the shift lever to the N position.

Remove the lower instrument panel finish panel (See page Нажмите здесь).

Disconnect the end of the transmission control cable assembly from the shift lever assembly.

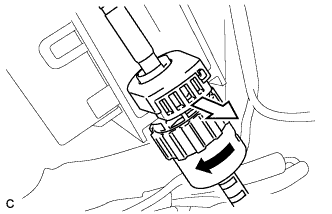

Turn the lock nut counterclockwise. While holding the lock nut, disconnect the transmission control cable from the shift lever retainer.

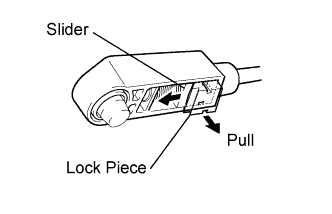

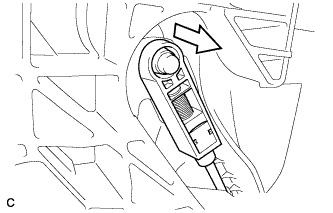

Slide the slider of the transmission control cable in the direction indicated by the arrow and pull the lock piece outward.

Connect the outer part of the transmission control cable to the shift lever retainer.

УКАЗАНИЕ:

After installation, check that the outer part of the cable protrudes above the A-A line as shown in the illustration.

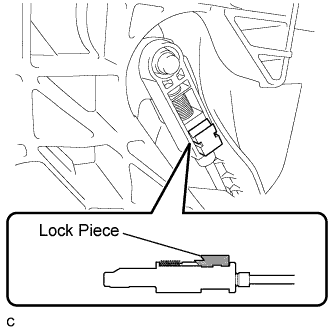

Install the transmission control cable end to the shift lever assembly.

ПРИМЕЧАНИЕ:

1. Check that the lock piece is pulled outward.

2. Install the cable end all the way to the base of the pin.

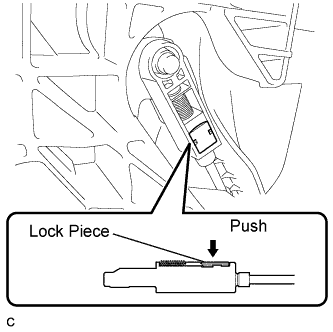

Push the lock piece into the adjuster case.

ПРИМЕЧАНИЕ:

Securely push in the lock piece until the slider lock is engaged.

After adjusting the shift lever position, check that the operation and function of the shift lever. If there is a problem, adjust the position again.

Install the lower instrument panel finish panel (See page Нажмите здесь).

When moving the lever from the P position to the R position with the ignition switch on (IG) and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into position.

Start the engine and make sure that the vehicle moves forward when moving the lever from the N position to the D position and moves rearward when moving the lever to the R position. If the operation cannot be performed as specified, inspect the park/neutral position switch assembly and check the shift lever assembly installation condition.

Apply the parking brake and turn the ignition switch on (IG).

Depress the brake pedal and check that the engine starts when the shift lever is set in the N position or P position, but does not start in the other positions.

Check that the back-up light illuminates and the reverse warning buzzer sounds when the shift lever is set in the R position, but does not function in the other positions.
If a malfunction failure is found, check the park/neutral position switch for continuity.
