DTC P0095 Intake Air Temperature Sensor 2 Circuit

DTC P0097 Intake Air Temperature Sensor 2 Circuit Low

DTC P0098 Intake Air Temperature Sensor 2 Circuit High


DESCRIPTION

The diesel turbo intake air temperature sensor is built into the charge air cooler and senses the intake air temperature. A built-in thermistor in the sensor changes its resistance value according to the intake air temperature. The lower the intake air temperature, the greater the thermistor resistance value. The higher the intake air temperature, the lower the thermistor resistance value (see Fig. 1).
The sensor is connected to the ECM. The 5 V power source voltage in the ECM is applied to the sensor from terminal THIA via resistor R. Resistor R and the sensor are connected in series. When the resistance value of the sensor changes in accordance with changes in the intake air temperature, the potential at terminal THIA also changes. Based on this signal, the ECM corrects the fuel injection volume to improve driveability with a cold engine.
COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit

DTC No.
DTC Detection Condition
Trouble Area
P0095
Open or short in diesel turbo intake air temperature sensor circuit for 0.5 seconds
(1-trip detection logic)
  1. Open or short in diesel turbo intake air temperature sensor circuit
  2. Diesel turbo intake air temperature sensor
  3. ECM
P0097
Short in diesel turbo intake air temperature sensor circuit for 0.5 seconds
(sensor resistance value less than 25 Ω [sensor output voltage less than 0.05 V])
(1-trip detection logic)
  1. Open or short in diesel turbo intake air temperature sensor circuit
  2. Diesel turbo intake air temperature sensor
  3. ECM
P0098
Open in diesel turbo intake air temperature sensor circuit for 0.5 seconds
(sensor resistance value more than 156 kΩ [sensor output voltage more than 4.91 V])
(1-trip detection logic)
  1. Open or short in diesel turbo intake air temperature sensor circuit
  2. Diesel turbo intake air temperature sensor
  3. ECM

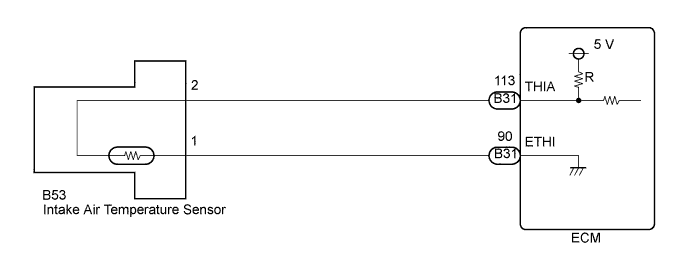

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit


INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:
After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).
УКАЗАНИЕ:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, and other data from the time the malfunction occurred.
1.READ VALUE OF DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air Temp (Turbo).

  1. Read the value.

    Standard value:
    Same value as the actual intake air temperature

    Result:

    Result
    		Proceed to
    Tester displayed: -40°C (-40°F)
    		A
    Tester displayed: 140°C (284°F) or more
    		B
    OK (same as air temperature near to intake manifold)
    		C
    УКАЗАНИЕ:
    1. If there is an open circuit, the tester indicates -40°C (-40°F).
    2. If there is a short circuit, the tester indicates 140°C (284°F) or more.


B
Перейдите к шагу 4

C
CHECK FOR INTERMITTENT PROBLEMS (Нажмите здесь)
A


2.CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN WIRE HARNESS)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit

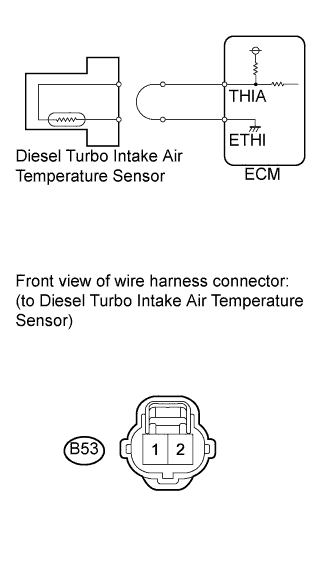

  1. Disconnect the diesel turbo intake air temperature sensor connector.

  1. Connect terminals 1 and 2 of the diesel turbo intake air temperature sensor wire harness side connector.

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air Temp (Turbo).

  1. Read the value.

    Standard value:
    140°C (284°F) or more

  1. Reconnect the diesel turbo intake air temperature sensor connector.



NG
Перейдите к шагу 3
OK

CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR (Нажмите здесь)

3.CHECK HARNESS AND CONNECTOR (DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit

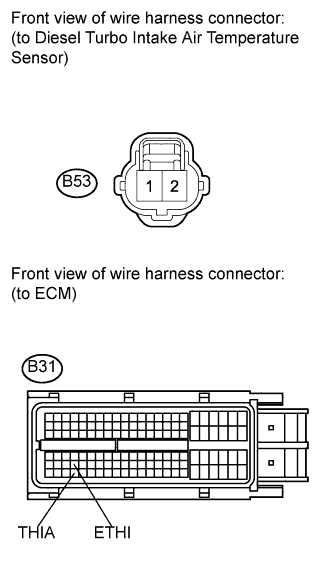

  1. Disconnect the diesel turbo intake air temperature sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B53-2 - B31-113 (THIA)
    		Always
    		Below 1 Ω
    B53-1 - B31-90 (ETHI)
    		Always
    		Below 1 Ω

  1. Reconnect the diesel turbo intake air temperature sensor.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR - ECM)
OK

CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM. (Нажмите здесь)

4.READ VALUE USING INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit

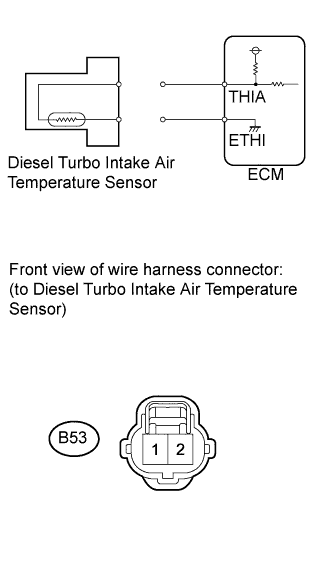

  1. Disconnect the diesel turbo intake air temperature sensor connector.

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air Temp (Turbo).

  1. Read the value.

    Standard value:
    -40°C (-40°F) or more

  1. Reconnect the diesel turbo intake air temperature sensor connector.



NG
Перейдите к шагу 5
OK

REPLACE DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR (Нажмите здесь)

5.CHECK HARNESS AND CONNECTOR (DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd. Dtc P0095 Intake Air Temperature Sensor 2 Circuit

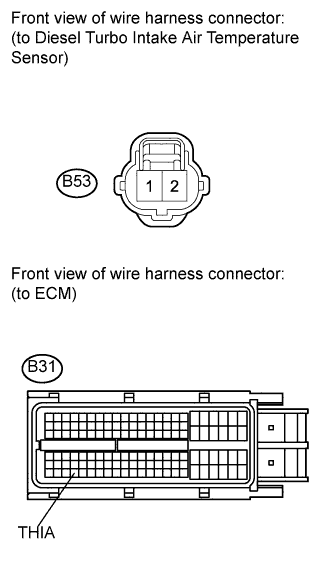

  1. Disconnect the diesel turbo intake air temperature sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B53-2 or B31-113 (THIA) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the diesel turbo intake air temperature sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (DIESEL TURBO INTAKE AIR TEMPERATURE SENSOR - ECM)
OK

REPLACE ECM (Нажмите здесь)
