DTC P0105 Manifold Absolute Pressure / Barometric Pressure Circuit

DTC P0107 Manifold Absolute Pressure / Barometric Pressure Circuit Low Input

DTC P0108 Manifold Absolute Pressure / Barometric Pressure Circuit High Input


DESCRIPTION

The diesel turbo pressure sensor detects the intake manifold pressure by using its built-in sensor unit. The ECM determines the basic injection duration and injection advance timing based on the voltage output by the diesel turbo pressure sensor.
COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd. Dtc P0105 Manifold Absolute Pressure / Barometric Pressure Circuit
The diesel turbo pressure sensor monitors the absolute pressure inside the intake manifold (default is 0 kPa (0 mmHg, 0 in.Hg)). As a result, the ECM controls the air fuel ratio at the proper level under any driving conditions, and fuel control accuracy is not influenced by fluctuations in the atmospheric pressure due to factors such as high altitude, etc.

DTC No.
DTC Detection Condition
Trouble Area
P0105
P0107
P0108
Open or short in diesel turbo pressure sensor circuit for 0.8 seconds or more
(1-trip detection logic)
  1. Open or short in diesel turbo pressure sensor circuit
  2. Diesel turbo pressure sensor
  3. Turbocharger assembly
  4. EGR valve assembly
  5. ECM

УКАЗАНИЕ:
When DTC P0105, P0107, or P0108 is detected, check the intake manifold pressure by entering the following menus on the intelligent tester: Powertrain / Engine and ECT / Data List / MAP.

Reference:
Intake Manifold Pressure
Malfunction
Approximately 0 kPa
Short in PIM circuit
250 kPa (1875 mmHg, 73.8 in.Hg) or more
  1. Open or short in VC circuit
  2. Open in PIM circuit
  3. Open in E2 circuit

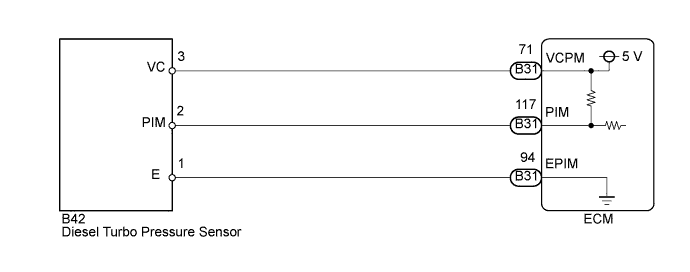

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd. Dtc P0105 Manifold Absolute Pressure / Barometric Pressure Circuit


INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:
After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).
УКАЗАНИЕ:
Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, and other data from the time the malfunction occurred.
1.READ VALUE OF DIESEL TURBO PRESSURE SENSOR

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG) and turn the tester on.

  1. Enter the following menus: Powertrain / Engine and ECT / Data List / MAP.

  1. Read the value.

    OK:
    Same value as the actual atmospheric pressure


NG
Перейдите к шагу 2
OK

CHECK FOR INTERMITTENT PROBLEMS (Нажмите здесь)

2.CHECK HARNESS AND CONNECTOR (DIESEL TURBO PRESSURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd. Dtc P0105 Manifold Absolute Pressure / Barometric Pressure Circuit

  1. Disconnect the diesel turbo pressure sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    B42-2 (PIM) - B31-117 (PIM)
    		Always
    		Below 1 Ω
    B42-3 (VC) - B31-71 (VCPM)
    		Always
    		Below 1 Ω
    B42-1 (E) - B31-94 (EPIM)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B42-2 (PIM) or B31-117 (PIM) - Body ground
    		Always
    		10 kΩ or higher
    B42-3 (VC) or B31-71 (VCPM) - Body ground
    		Always
    		10 kΩ or higher
    B42-1 (E) or B31-94 (EPIM) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the diesel turbo pressure sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (DIESEL TURBO PRESSURE SENSOR - ECM)
OK


3.INSPECT TURBOCHARGER SUB-ASSEMBLY

  1. Check the turbocharger sub-assembly (See page Нажмите здесь).



NG
REPLACE TURBOCHARGER SUB-ASSEMBLY (Нажмите здесь)
OK


4.INSPECT EGR VALVE ASSEMBLY

  1. Check the EGR valve assembly (See page Нажмите здесь).



NG
REPLACE EGR VALVE ASSEMBLY (Нажмите здесь)
OK


5.REPLACE DIESEL TURBO PRESSURE SENSOR

NEXT


6.CHECK WHETHER DTC OUTPUT RECURS

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG).

  1. Turn the tester on.

  1. Clear the DTCs (See page Нажмите здесь).

  1. Start the engine.

  1. Enter the following menu items: Powertrain / Engine and ECT / DTC.

  1. Read the DTCs.

    Result:

    Result
    		Proceed to
    DTC is not output
    		A
    DTC P0105, P0107 or P0108 is output
    		B


B
REPLACE ECM (Нажмите здесь)
A

END
