Датчик Температуры Отработавших Газов Установка. Corolla Auris

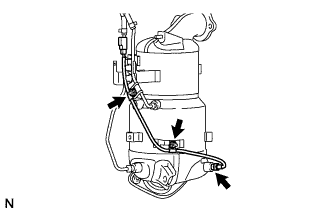

Temporarily install the exhaust gas temperature sensor (lower) with the 2 nuts.

Tighten the 2 nuts.

Момент затяжки:

6.4 Н*м{65 кгс*см, 57 фунт-сила-дюймов}

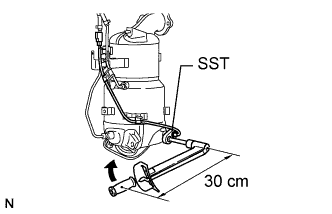

Using SST, tighten the nut of the exhaust gas temperature sensor (lower).

SST

09023-38401

Момент затяжки:

without SST :

30 Н*м{306 кгс*см, 22 фунт-сила-футов}

with SST:

27 Н*м{275 кгс*см, 20 фунт-сила-футов}

УКАЗАНИЕ:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

Temporarily install the exhaust gas temperature sensor (upper).

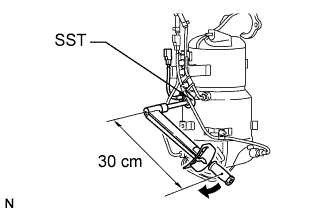

Using SST, tighten the nut of the exhaust gas temperature sensor (upper).

SST

09023-38401

Момент затяжки:

without SST :

30 Н*м{306 кгс*см, 22 фунт-сила-футов}

with SST:

27 Н*м{275 кгс*см, 20 фунт-сила-футов}

УКАЗАНИЕ:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

Temporarily install a new turbine outlet elbow gasket and exhaust manifold converter with the 3 nuts.

Temporarily install the No. 2 exhaust manifold stay with the 2 bolts and nut.

Temporarily install the No. 2 manifold stay with the 3 bolts.

Temporarily install the No. 1 manifold stay with the bolt and nut.

Tighten the 2 bolts of the No. 2 exhaust manifold stay to the cylinder block (in the order of the upper bolt and lower bolt).

Момент затяжки:

56 Н*м{571 кгс*см, 41 фунт-сила-футов}

Tighten the 3 nuts of the exhaust manifold converter to the turbocharger sub-assembly while pushing the manifold converter towards the turbocharger sub-assembly.

Момент затяжки:

25 Н*м{255 кгс*см, 18 фунт-сила-футов}

Tighten the nut of the No. 2 exhaust manifold stay to the exhaust manifold converter.

Момент затяжки:

56 Н*м{571 кгс*см, 41 фунт-сила-футов}

Tighten the bolt of the No. 2 manifold stay to the exhaust manifold converter.

Момент затяжки:

56 Н*м{571 кгс*см, 41 фунт-сила-футов}

УКАЗАНИЕ:

Ensure that the stay is pushed flush with the cylinder block and manifold converter while tightening.

Tighten the 2 bolts of the No. 2 manifold stay to the cylinder block.

Момент затяжки:

56 Н*м{571 кгс*см, 41 фунт-сила-футов}

Tighten the bolt of the No. 1 manifold stay to the cylinder head.

Момент затяжки:

25 Н*м{255 кгс*см, 18 фунт-сила-футов}

УКАЗАНИЕ:

Ensure that the stay is pushed flush with the cylinder head and manifold converter while tightening.

Tighten the nut of the No. 1 manifold stay to the exhaust manifold converter.

Момент затяжки:

25 Н*м{255 кгс*см, 18 фунт-сила-футов}
