Дополнительная Форсунка Подачи Топлива В Выпускную Трубу (Для Dpf) -- Установка |
| 1. INSTALL EXHAUST FUEL ADDITION INJECTOR ASSEMBLY |

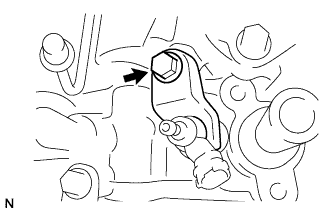

Install a new gasket, exhaust fuel addition injector and nozzle holder clamp with the washer and bolt.
- Момент затяжки:
- 29 Н*м{296 кгс*см, 21 фунт-сила-футов}
- УКАЗАНИЕ:
- Install the nozzle holder clamp while holding it.
 |
| 2. INSTALL FUEL TUBE SUB-ASSEMBLY |
Install the fuel tube sub-assembly and a new gasket with the union bolt.
- Момент затяжки:
- 23 Н*м{235 кгс*см, 17 фунт-сила-футов}
 |

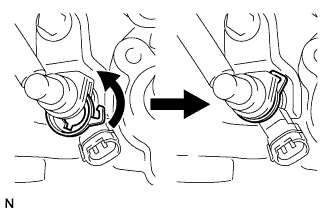

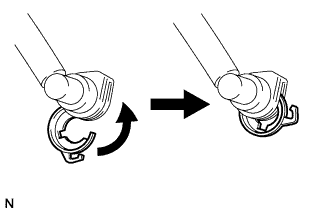

Turn the retainer in the direction indicated by the arrow until the retainer stops.
 |

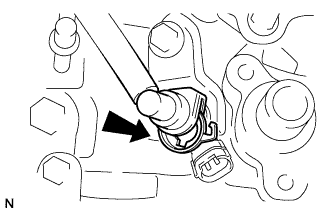

Insert the fuel tube connector into the injector.
 |
Turn the retainer in the direction indicated by the arrow until it makes a "click" sound.
- ПРИМЕЧАНИЕ:
- If the fuel tube connector is not inserted to the correct position of the injector, the retainer cannot be turned further in the direction of the arrow.
 |
Connect the exhaust fuel addition injector connector.
 |
| 3. INSTALL FUEL HOSE PROTECTOR |
Install the fuel hose protector with the bolt.
- Момент затяжки:
- 40 Н*м{408 кгс*см, 30 фунт-сила-футов}
 |
| 4. INSTALL AIR CLEANER CASE |
Install the 3 bolts and air cleaner case.
- Момент затяжки:
- 7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}
 |
| 5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY |
Install the air cleaner filter element.
Install the air cleaner cap sub-assembly, and connect the 2 clamps and band.
 |
Connect the No. 2 ventilation hose.
Connect the mass air flow meter connector.
| 6. INSTALL NO. 1 ENGINE COVER |
Attach the 4 clips to install the engine cover.
 |
| 7. INSPECT FOR FUEL LEAK |
- УКАЗАНИЕ:
- Using the intelligent tester to perform Active Tests allow relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
PERFORM ACTIVE TEST
Connect the intelligent tester to the DLC3.
Turn the ignition switch on (IG).
Turn the intelligent tester on.
Enter the following menus: Powertrain / Engine / Active Test.
Perform the Active Test.
Tester Display Test Part Control Range Diagnostic Notes Test the Fuel Leak Pressurizes common rail internal fuel pressure, and checks for fuel leaks Stop/Start - Fuel pressure inside common rail pressurized to specified value and engine speed increased to 2000 rpm when ON is selected
- Above conditions preserved while test is ON
- Fuel pressure inside common rail pressurized to specified value and engine speed increased to 2000 rpm when ON is selected
