Стартер (Изготовление Tmuk, Tmmt) Повторная Сборка. Corolla Auris

Apply high-temperature grease to the planetary gears of the planetary shaft.

Install the 3 planetary gears.

Insert the plate to the starter center bearing clutch.

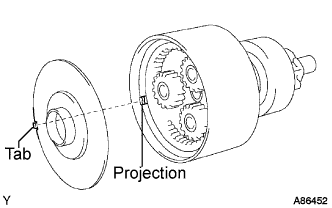

Check that the tab of the starter armature plate fits over the projection of the starter center bearing clutch sub-assembly.

Install the starter armature to the starter center bearing clutch sub-assembly.

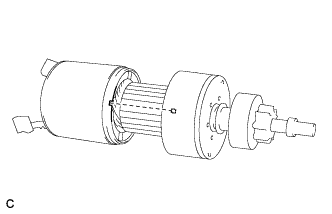

Align the tab of the starter center bearing clutch with the notch of the starter yoke, and install the starter yoke.

Install the starter brush holder assembly.

Using a screwdriver, hold the brush spring back and connect the brush into the brush holder.

Connect the 4 brushes.

Align the starter commutator end frame rubber with the groove of the starter yoke assembly.

Install the starter commutator end frame with the 2 screws.

Момент затяжки:

3.8 Н*м{39 кгс*см, 33 фунт-сила-дюймов}

Apply high-temperature grease to the starter pinion drive lever.

Install the starter pinion drive lever to the starter center bearing clutch.

Align the claw of the starter center bearing clutch with the groove inside the starter drive housing, and install the starter center bearing clutch to the starter drive housing.

Using a T30 "TORX" driver, install the starter drive housing with the 2 bolts.

Момент затяжки:

6.0 Н*м{61 кгс*см, 53 фунт-сила-дюймов}

Install the starter magnetic switch with the 2 nuts.

Момент затяжки:

7.5 Н*м{76 кгс*см, 66 фунт-сила-дюймов}

Connect the lead wire to the terminal with the nut.

Момент затяжки:

6.5 Н*м{66 кгс*см, 57 фунт-сила-дюймов}
