Стартер (Изготовление Tmuk, Tmmt) Разборка. Corolla Auris

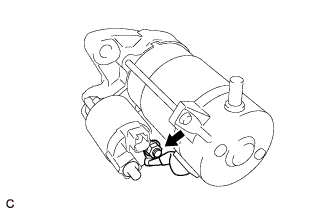

Remove the nut, and disconnect the lead wire from the starter magnetic switch assembly.

Remove the 2 nuts and starter magnetic switch assembly.

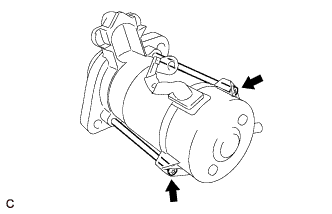

Using a T30 "TORX" driver, remove the 2 bolts.

Pull out the yoke and the starter commutator end frame assembly together with the armature.

Remove the starter pinion drive lever.

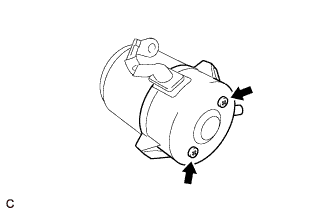

Remove the 2 screws and end frame.

ПРИМЕЧАНИЕ:

While holding down the lead wire, remove the starter commutator end frame.

Using a screwdriver, hold the spring back and disconnect the brush from the brush holder.

Disconnect the 4 brushes, and remove the brush holder.

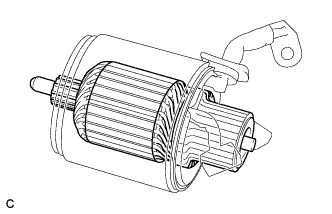

Remove the starter armature from the yoke.

Remove the starter yoke from the starter center bearing clutch sub-assembly.

Remove the starter armature plate from the starter center bearing clutch.

Remove the 3 planetary gears.
