Стартер (Изготовление Tmc) Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Запуска 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE NO. 1 ENGINE COVER

  3. REMOVE RADIATOR UPPER AIR DEFLECTOR

  4. REMOVE NO. 1 ENGINE UNDER COVER

  5. REMOVE BATTERY CLAMP SUB-ASSEMBLY

  6. REMOVE BATTERY

  7. REMOVE BATTERY TRAY

  8. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY

  9. REMOVE NO. 2 AIR TUBE

  10. REMOVE STARTER ASSEMBLY

Стартер (Изготовление Tmc) -- Снятие



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


2. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Detach the 4 clips and remove the engine cover.



3. REMOVE RADIATOR UPPER AIR DEFLECTOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 6 clips and upper radiator air deflector.



4. REMOVE NO. 1 ENGINE UNDER COVER


5. REMOVE BATTERY CLAMP SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the bolt and loosen the nut.

  1. Detach the hook of the battery clamp from the battery carrier, and then remove the battery clamp.



6. REMOVE BATTERY


7. REMOVE BATTERY TRAY


8. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Detach the vacuum transmitting hose from the 3 clamps.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the 2 vacuum transmitting hoses from the No. 2 air tube.



9. REMOVE NO. 2 AIR TUBE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the sensor connector.

  1. Remove the bolt from the No. 2 air tube.

  1. Loosen the 2 hose clamps.

  1. Disconnect the No. 2 air tube from the No. 4 air hose.

  1. Remove the No. 4 air hose from the diesel throttle body.



10. REMOVE STARTER ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the bolt and disconnect the wire harness clamp.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts and disconnect the ground cables from the manual transaxle.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

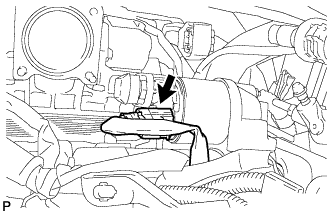

  1. Disconnect the starter connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the nut and disconnect the wire harness.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the bolt and bracket from the engine.

  1. Remove the 2 bolts and starter assembly.
