Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Запуска 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
INSPECT ILLUMINATION DURATION OF GLOW INDICATOR LIGHT (for DPF)
INSPECT ILLUMINATION DURATION OF GLOW INDICATOR LIGHT (for CCo)
Система Предпускового Подогрева -- Проверка Без Снятия С Автомобиля |
- ПРИМЕЧАНИЕ:
- Turn the ignition switch off for 60 seconds before performing the following inspections.
| 1. INSPECT ILLUMINATION DURATION OF GLOW INDICATOR LIGHT (for DPF) |
Turn the ignition switch on (IG) and measure the duration of time that the light remains illuminated.
- Light illumination duration:
- Refer to the graph and the table
- Light illumination duration:
Engine coolant temperature
°C (°F)Light illumination time

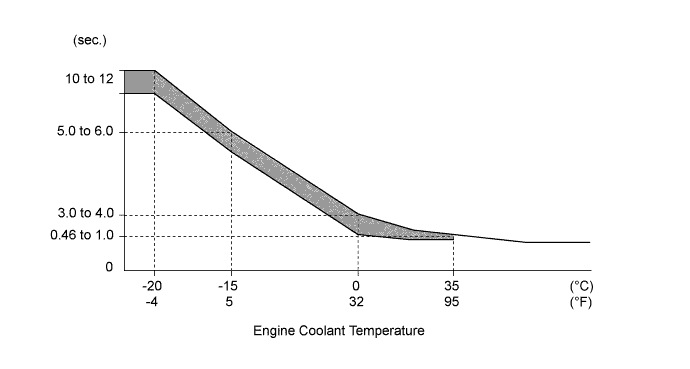

(sec.)-20 (-4) 10 to 12 -15 (5) 5.0 to 6.0 0 (32) 3.0 to 4.0 35 (95) 0.45 to 1.0
| 2. INSPECT ILLUMINATION DURATION OF GLOW INDICATOR LIGHT (for CCo) |
Turn the ignition switch on (IG) and measure the duration of time that the light remains illuminated.
- Light illumination duration:
- Refer to the graph and the table
- Light illumination duration:
Engine coolant temperature
°C (°F)Light illumination time
(sec.)-20 (-4) 10 to 12 -15 (-5 6.0 to 7.2 15 (59) 0.46 to 2.4 32 (89.6) 0.46
| 3. INSPECT PRE-HEATING |
Turn the ignition switch on (IG) and measure the length of time that battery voltage is applied to the glow plugs.
- Pre-heating time:
Engine coolant temperature

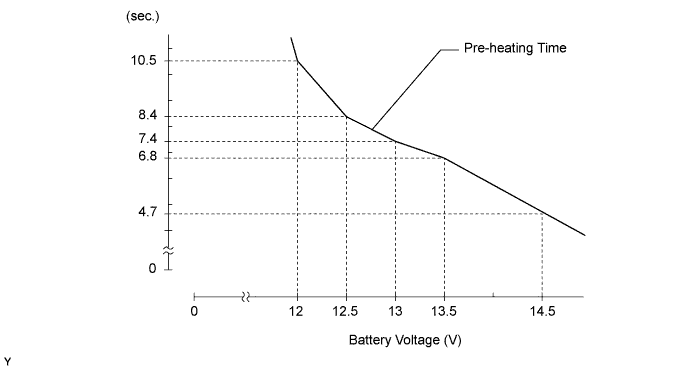

°C (°F)Pre-heating time 40 (104) or more 1 sec. 40 (104) or less Refer to the graph*1
(15 sec. at the longest)
If the result is not as specified, check the ECM, engine coolant temperature sensor, glow plug and glow plug relay.
| 4. INSPECT AFTER GLOW TIME (for DPF) |
Remove the glow plug relay.
 |
After the engine starts, measure the length of time that battery voltage remains present.

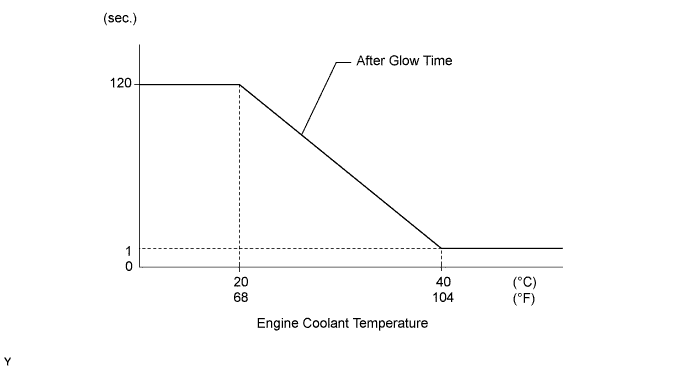

- After glow time:

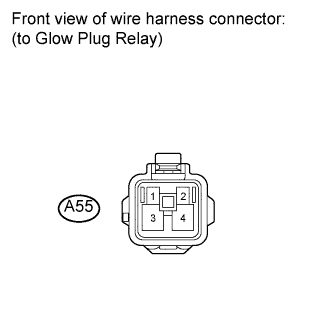

Tester Connection Condition Specified Condition A55-2 - Body ground - Refer to the graph above
| 5. INSPECT AFTER GLOW TIME (for CCo) |
Remove the glow plug relay.
|
After the engine starts, measure the length of time that battery voltage remains present.

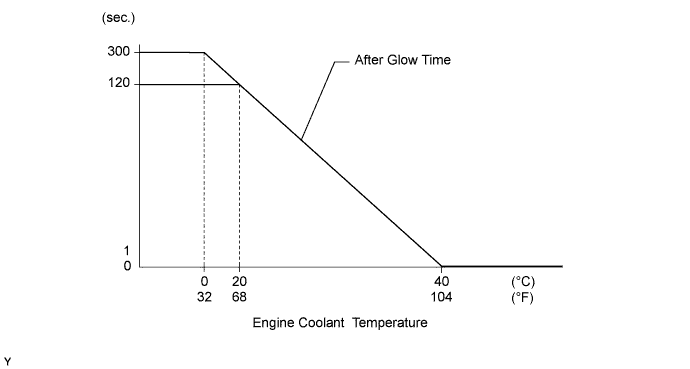

- After glow time:
Tester Connection Condition Specified Condition A55-2 - Body ground - Refer to the graph above
