DTC P2716 Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)


DESCRIPTION

The shift solenoid valve SLT controls the transmission line pressure for smooth transmission operation based on signals from the throttle position sensor and the vehicle speed sensor. The ECM adjusts the duty cycle of the shift solenoid valve SLT to control hydraulic line pressure coming from the primary regulator valve. Appropriate line pressure assures smooth shifting with varying engine outputs.

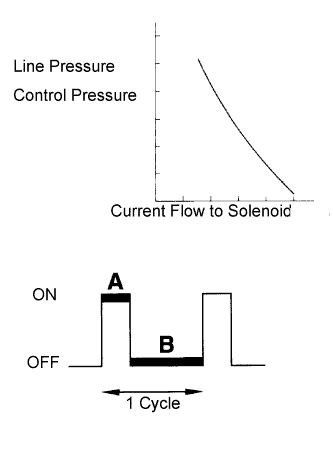

(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle.
For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then
Duty Ratio = A/(A + B) x 100 (%)

DTC No.
DTC Detection Condition
Trouble Area
P2716
Open or short is detected in shift solenoid valve SLT circuit for 1 second or more while driving (1-trip detecting logic).
  1. Open or short in shift solenoid valve SLT circuit
  2. Shift solenoid valve SLT
  3. ECM
COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии. Dtc P2716 Pressure Control Solenoid D Electrical (Shift Solenoid Valve Slt)

MONITOR DESCRIPTION

When an open or short in the shift solenoid valve SLT circuit is detected, the ECM interprets this as a fault. The ECM will turn on the MIL and store the DTC.

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии. Dtc P2716 Pressure Control Solenoid D Electrical (Shift Solenoid Valve Slt)


INSPECTION PROCEDURE

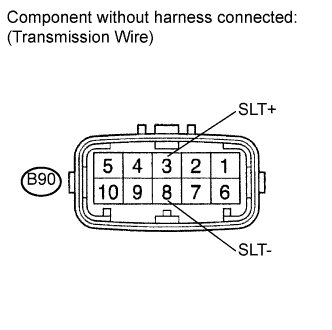

1.INSPECT TRANSMISSION WIRE (SLT)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии. Dtc P2716 Pressure Control Solenoid D Electrical (Shift Solenoid Valve Slt)

  1. Disconnect the transmission wire connector from the transaxle.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 (SLT+) - 8 (SLT-)
    		20°C (68°F)
    		5.0 to 5.6 Ω

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    3 (SLT+) - Body ground
    		Always
    		10 kΩ or higher
    8 (SLT-) - Body ground
    		Always
    		↑


NG
Перейдите к шагу 3
OK

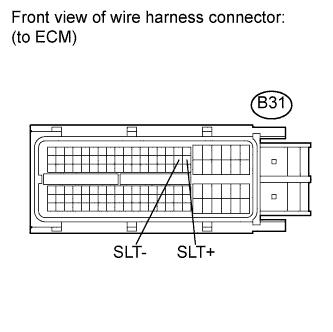

2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии. Dtc P2716 Pressure Control Solenoid D Electrical (Shift Solenoid Valve Slt)

  1. Connect the transmission wire connector to the transaxle.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B31-40 (SLT+) - B31-39 (SLT-)
    		20°C (68°F)
    		5.0 to 5.6 Ω

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B31-40 (SLT+) - Body ground
    		Always
    		10 kΩ or higher
    B31-39 (SLT-) - Body ground
    		Always
    		↑


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE ECM (for 2ZR-FE) (Нажмите здесь)

3.INSPECT SHIFT SOLENOID VALVE SLT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Автоматическая Трансмиссия U341E.Система Автоматической Трансмиссии. Dtc P2716 Pressure Control Solenoid D Electrical (Shift Solenoid Valve Slt)

  1. Remove the shift solenoid valve SLT.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance :
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		20°C (68°F)
    		5.0 to 5.6 Ω

  1. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

    OK:
    The solenoid makes an operating sound.


NG
REPLACE SHIFT SOLENOID VALVE SLT (Нажмите здесь)
OK

REPAIR OR REPLACE TRANSMISSION WIRE (Нажмите здесь)
