Нагнетающий Топливный Насос Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Топливная Система 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE NO. 1 ENGINE COVER

  3. REMOVE UPPER RADIATOR AIR DEFLECTOR

  4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  5. REMOVE AIR CLEANER CASE

  6. REMOVE NO. 3 FUEL HOSE

  7. REMOVE FUEL HOSE PROTECTOR (for DPF)

  8. REMOVE FUEL TUBE SUB-ASSEMBLY (for DPF)

  9. DISCONNECT NO. 1 FUEL HOSE

  10. REMOVE FUEL INLET PIPE SUB-ASSEMBLY

  11. REMOVE SUPPLY PUMP ASSEMBLY

Нагнетающий Топливный Насос -- Снятие



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


2. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Detach the 4 clips and remove the engine cover.



3. REMOVE UPPER RADIATOR AIR DEFLECTOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 6 clips and upper radiator air deflector.



4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the mass air flow meter connector.

  1. Disconnect the No. 2 ventilation hose.

  1. Disconnect the 2 clamps and band, and remove the air cleaner cap sub-assembly.

  1. Remove the air cleaner filter element.



5. REMOVE AIR CLEANER CASE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 bolts and air cleaner case.



6. REMOVE NO. 3 FUEL HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

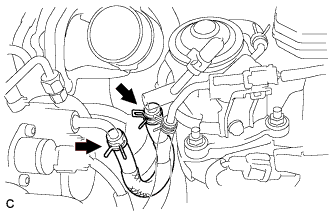

  1. Using pliers, slide the 2 clips to remove the No. 3 fuel hose.



7. REMOVE FUEL HOSE PROTECTOR (for DPF)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the bolt and fuel hose protector.



8. REMOVE FUEL TUBE SUB-ASSEMBLY (for DPF)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the exhaust fuel addition injector connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Turn the retainer as shown in the illustration.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the fuel tube sub-assembly.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the union bolt, fuel tube sub-assembly and gasket.



9. DISCONNECT NO. 1 FUEL HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

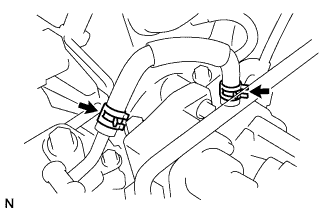

  1. Using pliers, slide the clip to disconnect the No. 1 fuel hose.



10. REMOVE FUEL INLET PIPE SUB-ASSEMBLY
ПРИМЕЧАНИЕ:
After removing the fuel inlet pipe, cover the common rail and supply pump to prevent dirt from being introduced.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the nut and fuel inlet pipe clamps.

  1. Using SST, remove the fuel inlet pipe.

    SST
    09023-38401


11. REMOVE SUPPLY PUMP ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the fuel temperature sensor connector.

  1. Disconnect the suction control valve connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts to remove the supply pump assembly and supply pump drive coupling.

  1. Remove the O-ring from the supply pump assembly.
