Блок Механической Трансмиссии В Блоке С Главной Передачей Повторная Сборка. Corolla ZZE150

Using SST and a press, press in the 4 shift fork shaft bearings.

SST

09820-00031

Clearance:

0 to 0.5 mm (0.000 to 0.0197 in.)

Align the protrusion on the output shaft cover with the groove on the transaxle case, as shown in the illustration, and install the cover to the transaxle case.

Using SST and a hammer, install the No. 2 output shaft front bearing.

SST

09950-70010(09951-07100)
09950-60020(09951-00710)

Align the protrusion on the output shaft cover with the groove on the transaxle case, as shown in the illustration, and install the cover to the transaxle case.

Coat a new output shaft front bearing with gear oil. Using SST and a press, install the bearing.

SST

09223-15020

Install the bolt.

Момент затяжки:

11 Н*м{115 кгс*см, 8 фунт-сила-футов}

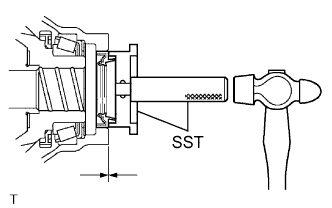

Using SST and a hammer, install a new transaxle case oil seal to the front transaxle case.

SST

09950-60010(09951-00580)

Drive in depth:

4.4 to 5.0 mm (0.1732 to 0.1969 in.)

Coat a new oil seal lip with MP grease.

Coat a new input shaft front bearing with gear oil. Using SST and a press, install the bearing.

SST

09223-00010

Install the bearing lock plate bolt.

Момент затяжки:

11 Н*м{115 кгс*см, 8 фунт-сила-футов}

Using snap ring pliers, install the 2 rear bearing shaft snap rings.

Using SST and a press, press in a new shift and select lever shaft needle roller bearing.

SST

09285-76010

Clearance:

177.8 to 178.7 mm (7.0000 to 7.0354 in.)

Using SST and a press, press in 4 new shift fork shaft bearings.

SST

09307-12010
09820-00031

Clearance A:

168.2 to 169.3 mm (6.6220 to 6.6653 in.)

Clearance B:

162.2 to 163.3 mm (6.3858 to 6.4291 in.)

Using SST and a hammer, install the front differential case front bearing outer race.

SST

09950-60020(09951-00910)
09950-70010(09951-07150)

Install the front differential case rear shim into the manual transmission case.

Using SST and a hammer, install the front differential case rear bearing outer race.

SST

09950-60020(09951-00910)
09950-70010(09951-07100)

Install differential case assembly to the front transaxle case.

Install the manual transmission case to the manual transaxle case with the 12 bolts.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Install the 6 bolts on the manual transaxle case side.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Turn the differential case in both directions to settle it.

Using SST and a torque wrench, measure the starting preload.

SST

09564-32011

Bearing preload:

1.00 to 2.49 N*m (10.2 to 25.4 kgf*cm, 8.85 to 22.04 in.*lbf)

Select a new shim.

Remove the manual transmission case from the front transaxle case.

Remove the 18 bolts and manual transmission case.

Install the output shaft rear bearing shim onto the manual transmission case.

УКАЗАНИЕ:

When reusing the output shaft rear bearing, first install a shim of the same thickness as the original. When installing a new output shaft rear bearing, first select and install a shim which is thinner than the original.

Using SST and a press, press in the output shaft rear bearing outer race.

SST

09950-60010(09951-00650)
09950-70010(09951-07200)

Install the No. 2 output shaft and differential case onto the front transaxle case.

Install the manual transmission case to the front transaxle case with the 12 bolts.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Install the 6 bolts on the manual transaxle case side.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Using SST, measure the No. 2 output shaft rear bearing preload. Subtract the value of the differential side bearing preload from the measured No. 2 output shaft rear bearing preload. Select a shim that will set the preload within the specified range below and install the shim.

Bearing preload:

3.89 to 5.51 N*m (40 to 56 kgf*cm, 34 to 49 in.*lbf)

Remove the manual transmission case.

1. Remove the 18 bolts and manual transmission case.


Remove the output shaft assembly from the front transaxle case.

Remove the differential case from the front transaxle case.

Clean and reinstall the transmission magnet onto the front transaxle case.

Coat the differential case tapered roller bearing with gear oil and install it onto the front transaxle case.

Install the transmission oil separator onto the front transaxle case with the 2 bolts.

Момент затяжки:

8.5 Н*м{87 кгс*см, 75 фунт-сила-дюймов}

Install the 3 shafts at the same time.

Coat the reverse idler gear, needle roller bearing, and reverse idler thrust washer with MP grease, and install them to the reverse idler gear shaft.

УКАЗАНИЕ:

Make sure that the protruding part on the reverse idler thrust washer is fitted into the groove of the reverse idler shaft.

Install the reverse idler gear shaft by sliding and lifting it.

Align the mark of the reverse idler gear shaft with the hole of the bolt.

Install the reverse shift fork onto the No. 4 hub sleeve.

Install the No. 3 gear shift fork onto the No. 3 hub sleeve.

Install the 5th and 6th shift fork shaft onto the front transaxle case.

Install the bolt to the No. 3 gear shift fork.

Момент затяжки:

20 Н*м{204 кгс*см, 14 фунт-сила-футов}

Install the reverse shift fork shaft into the front transaxle case.

Install the bolt to the reverse shift fork.

Момент затяжки:

20 Н*м{204 кгс*см, 14 фунт-сила-футов}

Install the shift arm into the front transaxle case.

Install the No. 1 gear shift fork onto the No. 1 hub sleeve.

Install the No. 3 gear shift head to the No. 5 gear shift fork shaft.

Using a pin punch and hammer, drive the slotted pin into the No. 3 gear shift head.

Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

Install the No. 5 gear shift fork shaft into the front transaxle case.

Assemble the shift arm and No. 5 gear shift fork shaft.

Install the shift arm pin to the shift arm.

Using a brass bar and hammer, install a new E-ring onto the shift arm pin.

Install the No. 2 gear shift fork onto the No. 2 hub sleeve.

Install the No. 2 gear shift head to the 3rd and 4th shift fork shaft.

Install the 3rd and 4th shift fork shaft to the transmission case.

Using a pin punch and hammer, drive a new slotted spring pin into the No. 2 gear shift fork.

Drive in depth :

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

Using a pin punch and hammer, drive the slotted spring pin into the No. 2 gear shift head.

Drive in depth :

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

Install the 1st and 2nd shift fork shaft into the front transaxle case.

Install the bolt onto the No. 1 gear shift fork.

Момент затяжки:

20 Н*м{204 кгс*см, 14 фунт-сила-футов}

Install the transmission oil separator onto the manual transmission case with the 2 bolts.

Момент затяжки:

8.5 Н*м{87 кгс*см, 75 фунт-сила-дюймов}

Install the No. 1 oil receiver pipe onto the manual transmission case.

ПРИМЕЧАНИЕ:

Do not damage the No. 1 oil receiver pipe.

Clean the seal packing attached on the manual transmission case and front transaxle case using a scraper and wire brush. Then remove the oil with non-residue solvent.

ПРИМЕЧАНИЕ:

Do not scratch the fitting surface.

Apply FIPG to the manual transmission case as shown in the illustration.

FIPG:

Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

ПРИМЕЧАНИЕ:

Assemble the parts within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.

Use 2 snap ring pliers to keep the snap rings stretched and install the manual transmission case.

Install the bolt to the No. 1 output shaft and lift the bolt from the service hole as shown in the illustration. Make sure that the snap rings are positioned correctly in the bearing grooves by checking that the distances between the centers of the snap ring holes are as shown in the illustration.

Install the manual transmission case to the front transaxle case with the 12 bolts.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Install the manual transmission case to the front transaxle case with the 6 bolts.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Coat the reverse idler gear shaft bolt with sealant and install it with a new gasket.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Момент затяжки:

80 Н*м{816 кгс*см, 59 фунт-сила-футов}

Coat the 4 shift detent ball plugs with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the 4 balls, 4 springs, 4 spring seats, and 4 shift detent ball plugs using a hexagon wrench (6 mm).

Момент затяжки:

22 Н*м{228 кгс*см, 17 фунт-сила-футов}

Clean the seal packing attached on the manual transmission case using a scraper and wire brush. Then remove the oil with white gasoline or equivalent.

ПРИМЕЧАНИЕ:

Do not scratch the fitting surface.

Apply FIPG to the manual transmission case as shown in the illustration.

FIPG:

Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

ПРИМЕЧАНИЕ:

Assemble the parts within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.

Coat the transmission case plugs with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the manual transmission case plugs to the manual transmission case.

Момент затяжки:

Case plug *1:

55 Н*м{561 кгс*см, 41 фунт-сила-футов}

Case plug *2:

22 Н*м{228 кгс*см, 17 фунт-сила-футов}

Install the manual transmission filler plug with a new gasket.

Момент затяжки:

39 Н*м{400 кгс*см, 29 фунт-сила-футов}

Install the manual transmission drain plug sub-assembly with a new gasket.

Момент затяжки:

39 Н*м{400 кгс*см, 29 фунт-сила-футов}

Coat a new oil seal lip with MP grease.

Using SST and a hammer, install the transmission case oil seal.

SST

09608-10010
09950-70010(09951-07200)

Drive in depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

ПРИМЕЧАНИЕ:

Do not damage the oil seal lip.

Coat a new oil seal lip with MP grease.

Using SST and a hammer, install the transaxle case oil seal.

SST

09608-32010
09950-70010(09951-07200)

Drive in depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

ПРИМЕЧАНИЕ:

Do not damage the oil seal lip.

Align the 4 shift fork shafts as shown in the illustration.

Clean the seal packing attached on the manual transmission case and control shaft cover using a scraper and wire brush. Then remove the oil with non-residue solvent.

ПРИМЕЧАНИЕ:

Do not scratch the fitting surface.

Apply FIPG to the manual transmission case as shown in the illustration.

FIPG:

Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

ПРИМЕЧАНИЕ:

Assemble the parts within 10 minutes of application. Otherwise, the packing (FIPG) material must be removed and reapplied.

Coat the 4 bolts with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the shift and select lever shaft onto the manual transmission case with the 4 bolts.

Момент затяжки:

19 Н*м{190 кгс*см, 14 фунт-сила-футов}

Coat the shift gate pin with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the shift gate pin onto the manual transmission case.

Момент затяжки:

30 Н*м{306 кгс*см, 22 фунт-сила-футов}

Coat the No. 2 lock ball assembly with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the No. 2 lock ball assembly onto the manual transmission case.

Момент затяжки:

29 Н*м{299 кгс*см, 22 фунт-сила-футов}

Coat the No. 1 lock ball assembly with sealant.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Install the No. 1 lock ball assembly onto the manual transmission case.

Момент затяжки:

39 Н*м{400 кгс*см, 29 фунт-сила-футов}

Install the back-up light switch assembly onto the manual transmission case with a new gasket.

SST

09816-30010

Момент затяжки:

40 Н*м{410 кгс*см, 30 фунт-сила-футов}

Coat the 2 bolts with sealant and install the selecting bell crank assembly to the manual transmission case with the these bolts.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Момент затяжки:

20 Н*м{204 кгс*см, 15 фунт-сила-футов}

Install the control cable bracket onto the manual transaxle case with the 3 bolts.

Sealant:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Момент затяжки:

17 Н*м{173 кгс*см, 13 фунт-сила-футов}

Install the clutch release fork boot onto the manual transmission case.

Using a deep socket wrench, install the release fork support to the front transaxle case.

Момент затяжки:

37 Н*м{375 кгс*см, 27 фунт-сила-футов}

Apply release hub grease to the release fork and release bearing assembly contact, release fork and push rod contact, and release fork pivot points.

Sealant:

Toyota Genuine Release Hub Grease or equivalent

Apply clutch sealant grease to the spline coupling part.

Sealant:

Toyota Genuine Clutch Spline Grease or equivalent

ПРИМЕЧАНИЕ:

Do not apply grease to portion A shown in the illustration.

Install the clutch release bearing assembly to the clutch release fork sub-assembly with the clutch release bearing clip.

Install the bearing to the release fork, and then install them to the transaxle assembly.
