  1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

  2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

  3. REMOVE FRONT DIFFERENTIAL RING GEAR

  4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

  5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT

  6. REMOVE FRONT DIFFERENTIAL SIDE GEAR

Корпус Дифференциала -- Разборка



1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Трансмиссия Ea61.Система Механической Трансмиссии.Корпус Дифференциала Разборка

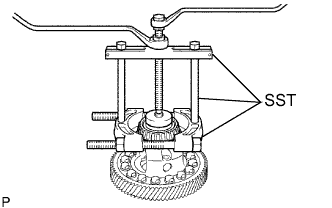

  1. Using SST, remove the front differential case front tapered roller bearing from the front differential case.

    SST
    09950-00020
    09950-00030
    09950-40011(09957-04010)
    09950-60010(09951-00560)


2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Трансмиссия Ea61.Система Механической Трансмиссии.Корпус Дифференциала Разборка

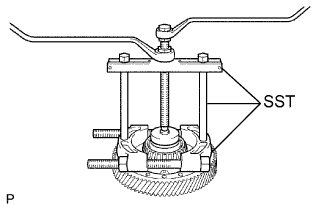

  1. Using SST, remove the front differential case rear tapered roller bearing from the rear differential case.

    SST
    09950-00020
    09950-00030
    09950-40011(09957-04010)
    09950-60010(09951-00490)


3. REMOVE FRONT DIFFERENTIAL RING GEAR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Трансмиссия Ea61.Система Механической Трансмиссии.Корпус Дифференциала Разборка

  1. Put matchmarks on the front differential ring gear and the front differential case.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

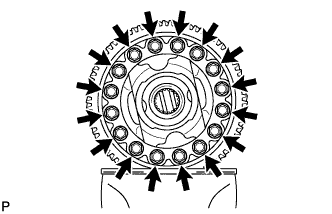

  1. Remove the 16 bolts. Using a plastic hammer, remove the front differential case.



4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Механическая Трансмиссия Ea61.Система Механической Трансмиссии.Корпус Дифференциала Разборка

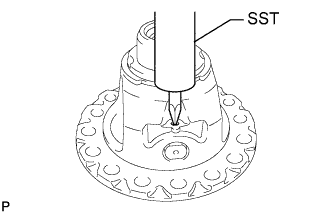

  1. Using SST and a hammer, unstake the staked part of the front differential case.

    SST
    09930-00010

  1. Using a pin punch and hammer, remove the front differential pinion shaft straight pin from the front differential case.



5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the front No. 1 differential pinion shaft from the front differential case.



6. REMOVE FRONT DIFFERENTIAL SIDE GEAR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 front differential pinions, 2 front differential pinion thrust washers, 2 front differential side gears, and 2 front differential side gear thrust washers from the front differential case.

    УКАЗАНИЕ:
    Remove the 2 pinion thrust washers and side gear thrust washers while turning the front differential pinion.
